68684 Series

Catalog

CONN RCPT 8POS 0.1 GOLD PCB

Part	Contact Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Color	Number of Rows	Contact Finish - Mating	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Number of Positions	Contact Material	Termination	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Material Flammability Rating	Applications	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions Loaded
Amphenol ICC (FCI) 68684-308	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	8	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-305LF	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in		Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-326LF	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	26	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-310LF	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	10	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-304	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	4	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-307	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	7	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-303LF	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in		Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All

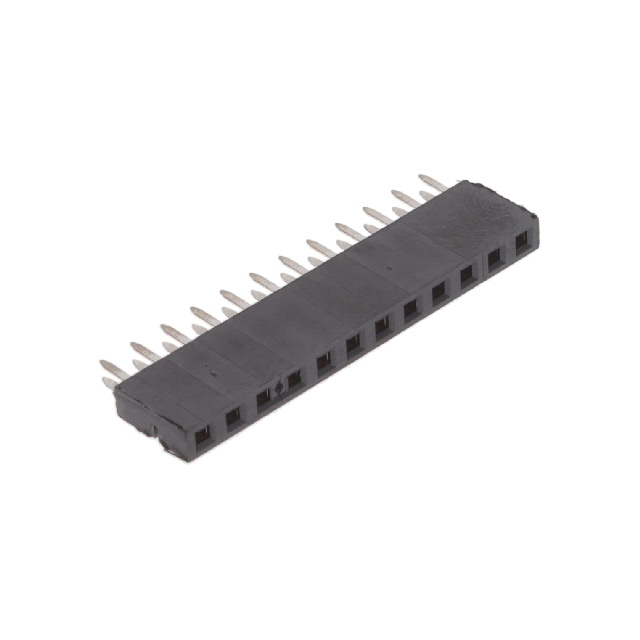

Amphenol ICC (FCI) 68684-312	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	12	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-309LF	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	9	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
Amphenol ICC (FCI) 68684-306LF	Female Socket	Receptacle Bottom or Top Entry	30 Áin	0.76 Ám	0.118 in	3 mm	Square	Black	1	Gold or Gold GXT™	Tin	7 mm	0.276 in	6	Phosphor Bronze	Solder	Push-Pull	2.54 µm	100 µin	Through Hole	UL94 V-0	Automotive General Purpose Industrial Telecommunications	0.1 in	2.54 mm	Polyphenylene Sulfide (PPS) Glass Filled	All
