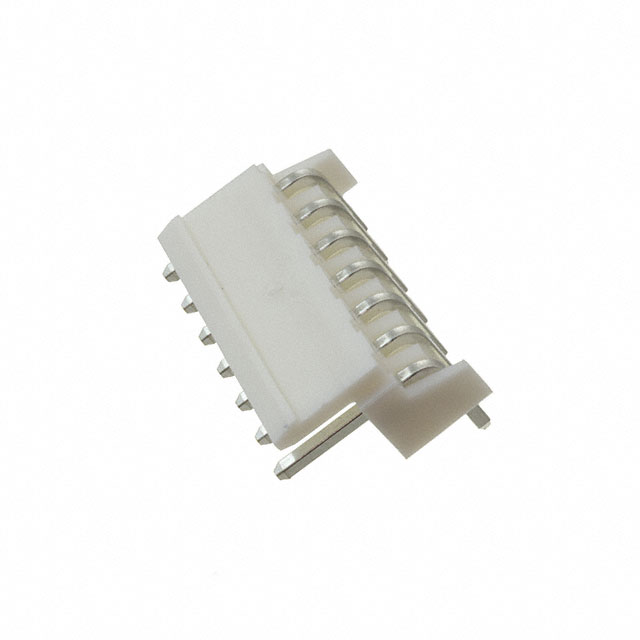

S7P-VH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 7POS 3.96MM
| Part | Number of Positions | Contact Type | Current Rating (Amps) | Mounting Type | Material Flammability Rating | Contact Material | Number of Rows | Connector Type | Contact Shape | Style | Insulation Material | Voltage Rating | Shrouding | Insulation Color | Contact Length - Mating | Contact Length - Mating | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Length - Post | Contact Length - Post | Contact Finish - Post | Termination | Insulation Height | Insulation Height | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 7 | Male Pin | 10 A | Right Angle Through Hole | UL94 V-0 | Brass | 1 | Header | Square | Board to Cable/Wire | Nylon 6/6 Polyamide (PA66) | 250 V | Shrouded - 1 Wall | Natural | 0.303 in | 7.7 mm | Locking Ramp | 3.96 mm | 0.156 in | All | 0.142 in | 3.6 mm | Tin | Solder | 0.335 " | 8.51 mm | 85 °C | -25 °C |
