Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Dual Row, 4 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable
Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Dual Row, 4 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable
Nano-Fit Vertical Header, Surface Mount, 2.50mm Pitch, Dual Row, 4 Circuits, 0.38µm Gold (Au) Plating, Black, Glow-Wire Capable
| Part | Pitch - Mating | Pitch - Mating | Fastening Type | Insulation Height [z] | Insulation Height [z] | Contact Finish - Post | Current Rating (Amps) | Contact Type | Style | Applications | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Insulation Color | Mounting Type | Insulation Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Number of Rows | Shrouding | Material Flammability Rating | Contact Shape | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Features | Number of Positions Loaded | Number of Positions | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

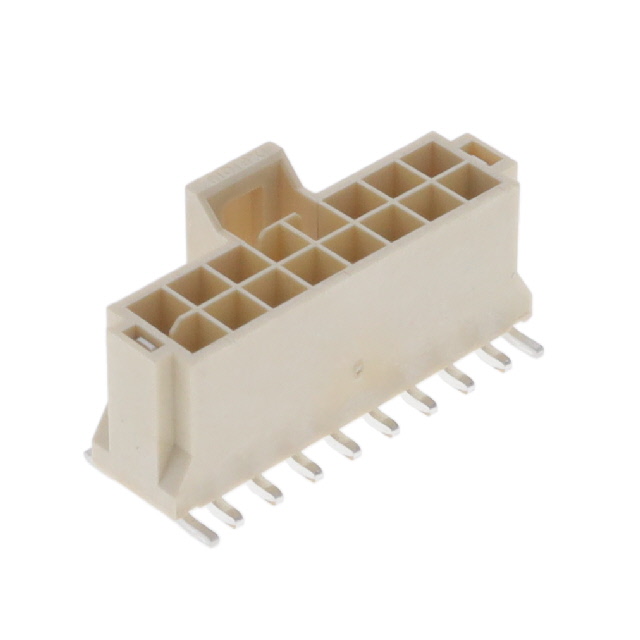

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | 16 | -40 °C | 105 ░C | 250 VAC | Natural | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | ||

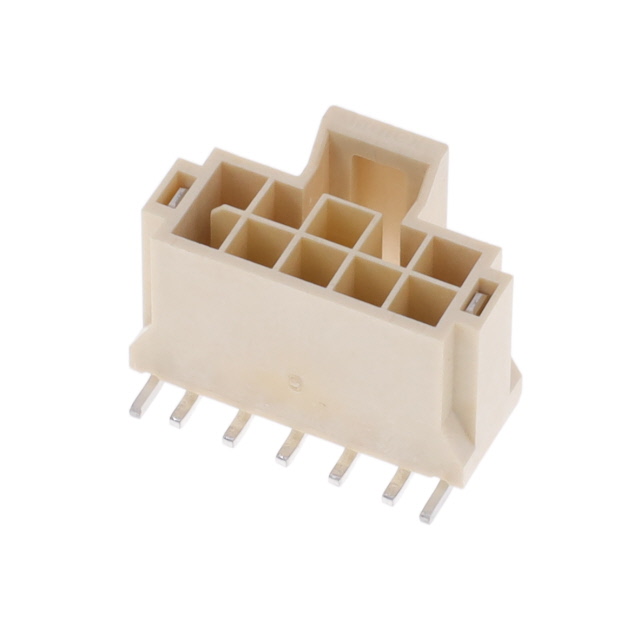

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Natural | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 10 | ||

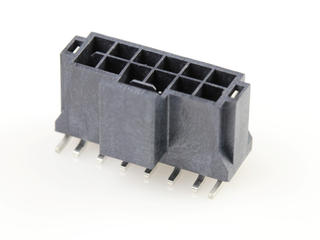

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Black | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 12 | ||

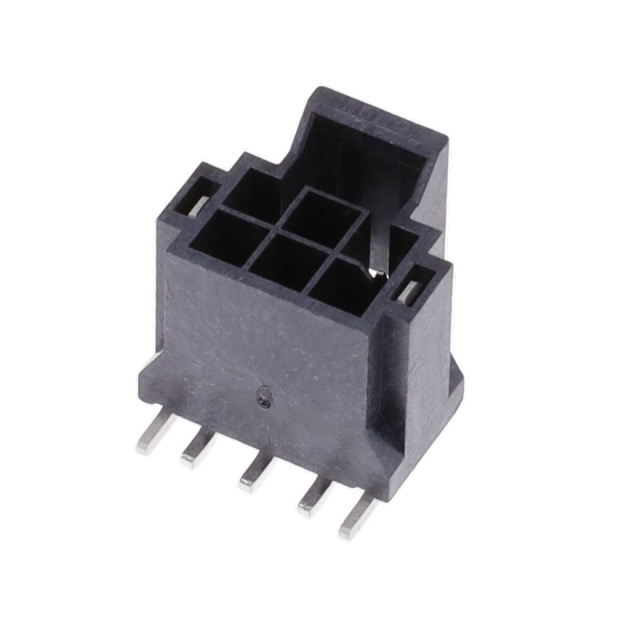

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Black | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 6 | ||
 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Natural | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 6 | ||

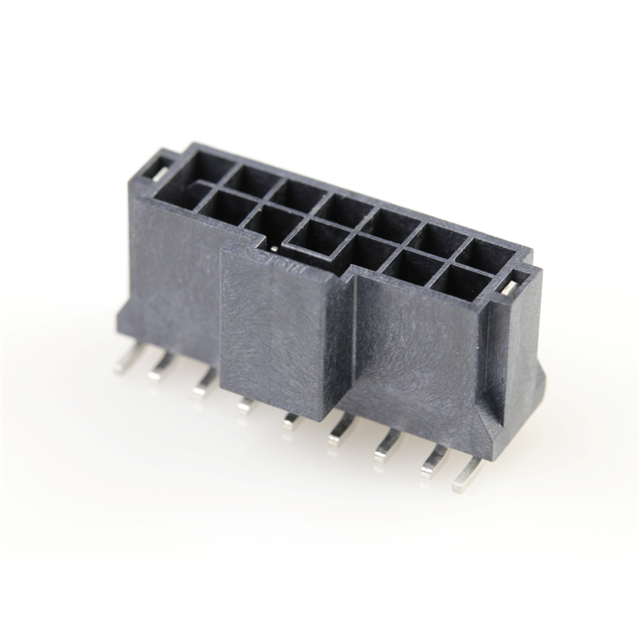

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Black | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 14 | ||

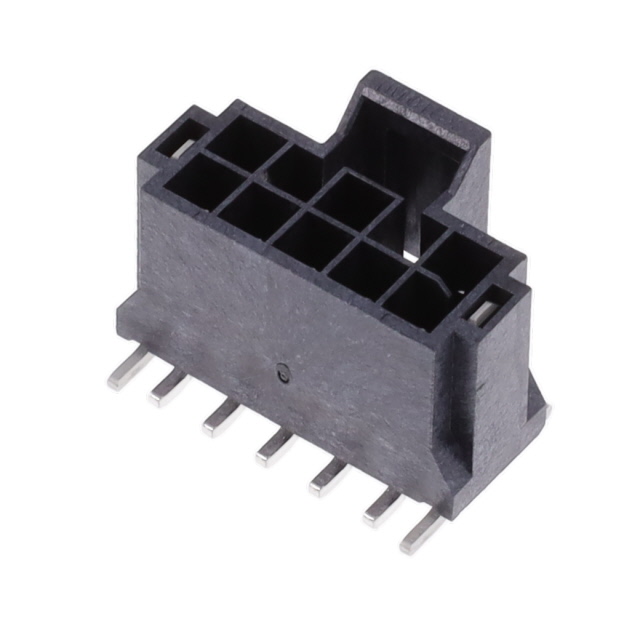

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Black | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 10 | ||

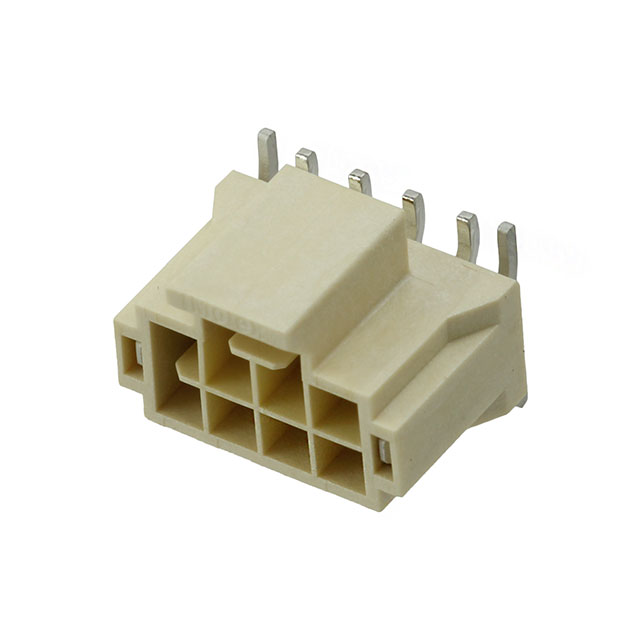

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Natural | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 8 | ||
 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 115 °C | 250 VAC | Black | Surface Mount | Liquid Crystal Polymer (LCP) | 15 µin | 0.38 µm | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 8 | Gold | |

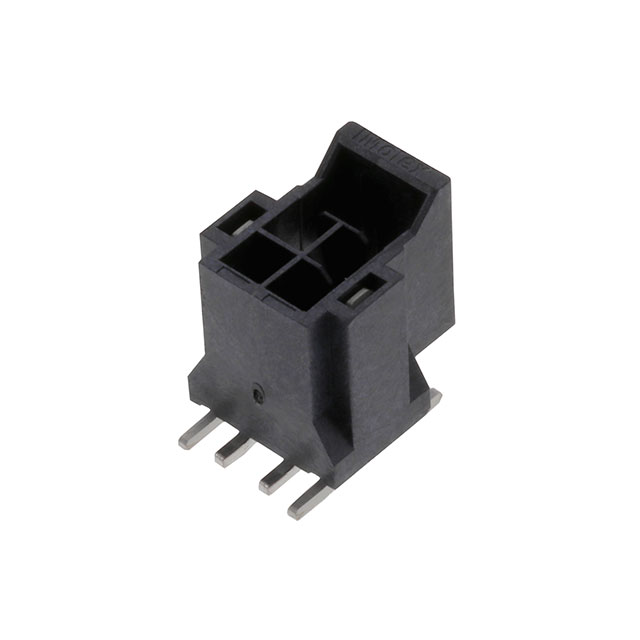

 Molex | 2.5 mm | 0.098 in | Latch Holder | 9.7 mm | 0.382 in | Tin | 4 A | Male Pin | Board to Cable/Wire | Automotive General Purpose Industrial Medical Military Telecommunications | -40 °C | 105 ░C | 250 VAC | Black | Surface Mount | Liquid Crystal Polymer (LCP) | 30 Áin | 0.76 Ám | Solder | 2 | Shrouded - 4 Wall | UL94 V-0 | Square | Header | 30 µin | 0.76 µm | Brass | 0.098 in | 2.5 mm | Pick and Place Solder Retention | All | 4 |
