M80-898 Series

Catalog

RECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 3 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 1 ROW

Part	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish	Cable Termination	Pitch [x]	Pitch [x]	Number of Rows	Fastening Type	Wire Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Color	Mounting Type	Number of Positions

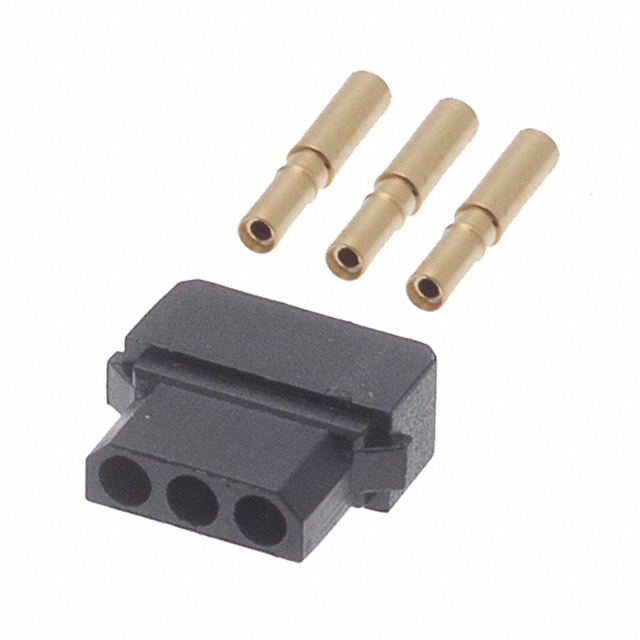

Harwin Inc. M80-8980305	24 AWG	28 AWG	Gold	Crimp	0.079 in	2 mm	1	Locking Ramp	Discrete	Receptacle	0.3 Ám	11.8 Áin	Female Socket	Black	Free Hanging (In-Line)
Harwin Inc. M80-8980605	24 AWG	28 AWG	Gold	Crimp	0.079 in	2 mm	1	Locking Ramp	Discrete	Receptacle	0.3 Ám	11.8 Áin	Female Socket	Black	Free Hanging (In-Line)	6

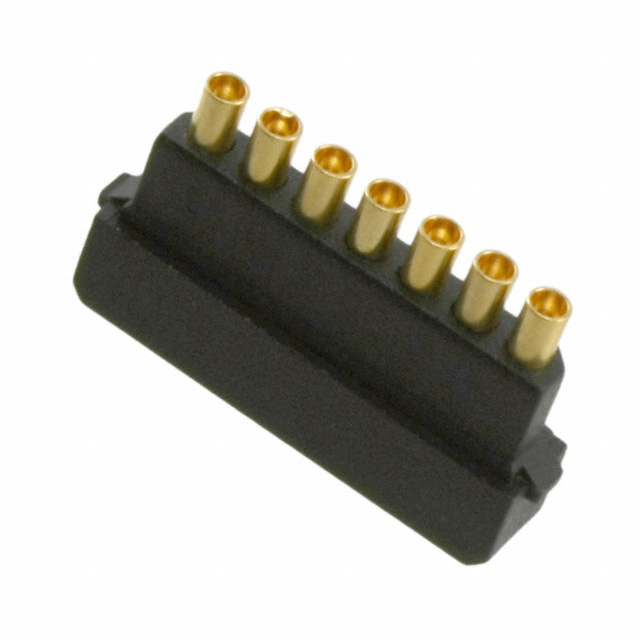

Harwin Inc. M80-8980705	24 AWG	28 AWG	Gold	Crimp	0.079 in	2 mm	1	Locking Ramp	Discrete	Receptacle	0.3 Ám	11.8 Áin	Female Socket	Black	Free Hanging (In-Line)	7

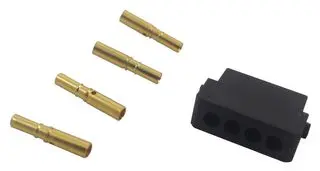

Harwin Inc. M80-8980405	24 AWG	28 AWG	Gold	Crimp	0.079 in	2 mm	1	Locking Ramp	Discrete	Receptacle	0.3 Ám	11.8 Áin	Female Socket	Black	Free Hanging (In-Line)	4

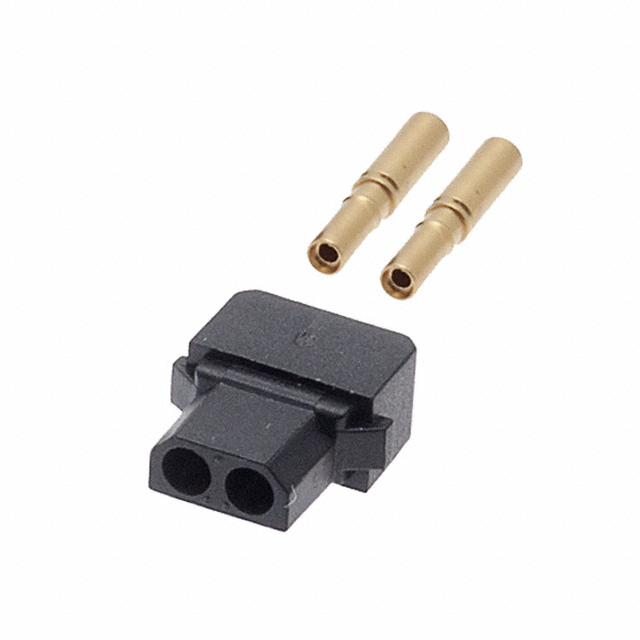

Harwin Inc. M80-8980205	24 AWG	28 AWG	Gold	Crimp	0.079 in	2 mm	1	Locking Ramp	Discrete	Receptacle	0.3 Ám	11.8 Áin	Female Socket	Black	Free Hanging (In-Line)	2
