45114 Series

Catalog

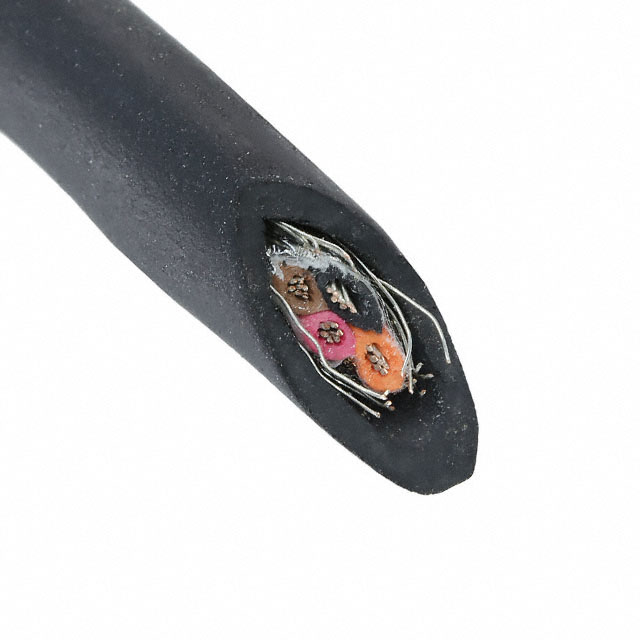

CABLE 4COND 24AWG BLK SHLD 1000'

Part	Features	Voltage	Shield Material	Length	Length	Conductor Insulation	Cable Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Ratings	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Shield Coverage	Shield Type	Jacket (Insulation) Material	Length [x]	Length [x]
ALPHA WIRE 45114 BK001	Biological Compatibility Drain Wire Rip Cord	300 V	Copper Tinned Suprashield®	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Multi-Conductor	Copper Tinned	0.252 in	6.4 mm	24 AWG	Black	32 AWG	7	1.067 mm	0.042 in	ISO 10993	4	-50 °C	125 °C	70 % 100 %	Braid Foil	Thermoplastic Elastomer (TPE)
ALPHA WIRE 45114 BK005	Biological Compatibility Drain Wire Rip Cord	300 V	Copper Tinned Suprashield®			Thermoplastic Elastomer (TPE)	Multi-Conductor	Copper Tinned	0.252 in	6.4 mm	24 AWG	Black	32 AWG	7	1.067 mm	0.042 in	ISO 10993	4	-50 °C	125 °C	70 % 100 %	Braid Foil	Thermoplastic Elastomer (TPE)	30.5 m	100 ft
ALPHA WIRE 45114 RD199	Biological Compatibility Drain Wire Rip Cord	300 V	Copper Tinned Suprashield®	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Multi-Conductor	Copper Tinned	0.252 in	6.4 mm	24 AWG	Red	32 AWG	7	1.067 mm	0.042 in	ISO 10993	4	-50 °C	125 °C	70 % 100 %	Braid Foil	Thermoplastic Elastomer (TPE)
ALPHA WIRE 45114 SL199	Biological Compatibility Drain Wire Rip Cord	300 V	Copper Tinned Suprashield®	1000 ft	304.8 m	Thermoplastic Elastomer (TPE)	Multi-Conductor	Copper Tinned	0.252 in	6.4 mm	24 AWG	Slate	32 AWG	7	1.067 mm	0.042 in	ISO 10993	4	-50 °C	125 °C	70 % 100 %	Braid Foil	Thermoplastic Elastomer (TPE)
