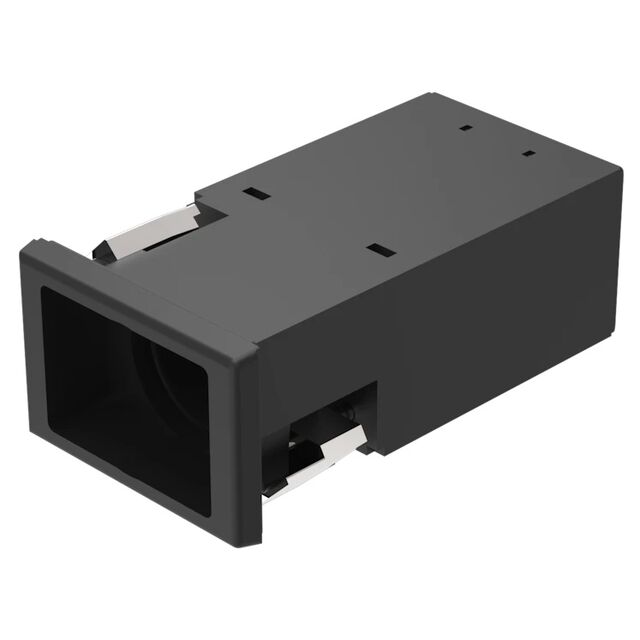

22-221 Series
Manufacturer: EAO
Beta
⌘K
SWITCH PB SPST-NO 10A 400V
| Part | Mechanical Life | Voltage Rating - AC | Current Rating (Amps) | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Circuit | Termination Style | Actuator Type | Mounting Type | Actuator Marking | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EAO | 1000000 Cycles | 400 V | 10 A | Off-On | 85 °C | -25 °C | Standard | 30 mm | 22 mm | SPST-NO | Screw Terminal | Button Rectangular | Panel Mount Front | No Marking | IP65 - Dust Tight Water Resistant |
EAO | 1000000 Cycles | 400 V | 10 A | Off-On | 85 °C | -25 °C | Standard | 30 mm | 22 mm | SPST-NO | Quick Connect - 0.250" (6.3mm) | Button Rectangular | Panel Mount Front | No Marking | IP65 - Dust Tight Water Resistant |
