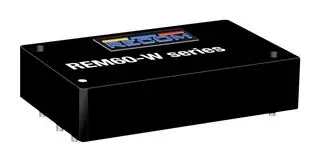

REM60-W Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE & MEDICAL, DIP, 4:1, 60 W, 1 OUTPUT, 15 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Number of Outputs	Power (Watts)	Supplier Device Package	Voltage - Output 1	Voltage - Isolation	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Features	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Type	Efficiency	Voltage - Input (Min) [Min]	Package / Case
Recom Power REM60-4815SW	105 C	-40 °C	60601-1; 62368-1	1	60 W	Quarter Brick	15 V	5000 V	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	ITE (Commercial) Medical	Adjustable Output Remote Sense	75 V	4 A	Isolated Module	95.5 %	18 V	Quarter Brick
Recom Power REM60-4824SW	105 C	-40 °C	60601-1; 62368-1	1	60 W	Quarter Brick	24 V	5000 V	Through Hole	57.9 mm	1.45 in	0.5 in	2.28 "	12.7 mm	36.8 mm	ITE (Commercial) Medical	Adjustable Output Remote Sense	75 V	2.5 A	Isolated Module	90 %	18 V	Quarter Brick
