1230 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SENSOR 30PSIG 0.13" 0.1V

Part	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Output Type	Features	Operating Pressure	Operating Pressure	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output [Min]	Output [Max]	Pressure Type	Port Size	Port Size	Port Size	Termination Style	Package / Case	Applications	Maximum Pressure	Maximum Pressure
TE Connectivity AMP Connectors 1230-030G-3L	0.1 %	206.84 kPa	30 PSI	Barbless	Wheatstone Bridge	Temperature Compensated	30 PSI	206.84 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV	Vented Gauge	Male Tube	0.13 in	3.23 mm	PCB	8-DIP Module

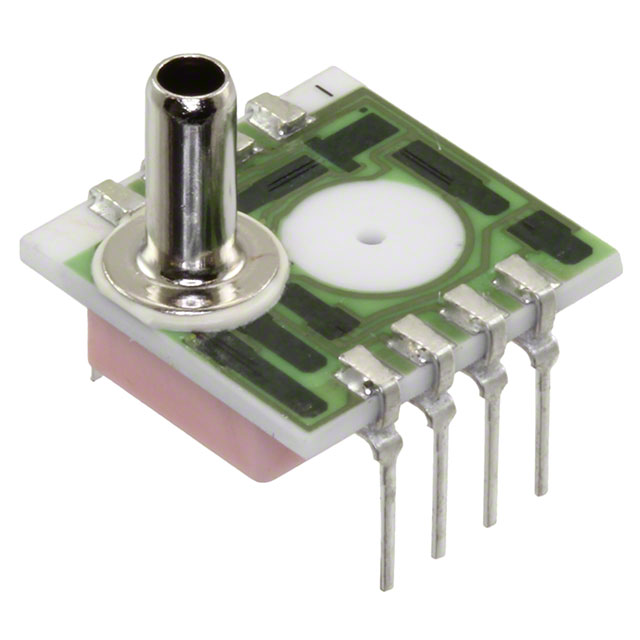

TE Connectivity AMP Connectors 1230-030A-3L	0.1 %	206.84 kPa	30 PSI	Barbless	Wheatstone Bridge	Temperature Compensated	30 PSI	206.84 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV		Male Tube	0.13 in	3.23 mm	PC Pin	8-DIP Module	Board Mount
TE Connectivity AMP Connectors 1230-100D-3L	0.1 %			Barbless	Wheatstone Bridge	Temperature Compensated	100 PSI	689.48 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV	Differential	Dual Male Tube	0.13 in	3.23 mm	PC Pin	8-DIP Module	Board Mount	200 PSI	1378.95 kPa
TE Connectivity AMP Connectors 1230-100A-3L	0.1 %			Barbless	Wheatstone Bridge	Temperature Compensated	100 PSI	689.48 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV		Male Tube	0.13 in	3.23 mm	PCB	8-DIP Module		200 PSI	1378.95 kPa
TE Connectivity AMP Connectors 1230-015A-1L	0.1 %			Barbless	Wheatstone Bridge	Temperature Compensated	15 PSI	103.42 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV		Male Tube	0.13 in	3.23 mm	PC Pin	8-DIP Module	Board Mount	45 PSI	310.26 kPa
TE Connectivity AMP Connectors 1230-002D-3N
TE Connectivity AMP Connectors 1230-030D-3L	0.1 %			Barbless	Wheatstone Bridge	Temperature Compensated	30 PSI	206.84 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV	Differential	Dual Male Tube	0.13 in	3.23 mm	PC Pin	8-DIP Module	Board Mount	45 PSI	310.26 kPa
TE Connectivity AMP Connectors 1230-100G-3L											Through Hole							PCB	8-DIP Module
TE Connectivity AMP Connectors 1230-050A-3L	0.1 %			Barbless	Wheatstone Bridge	Temperature Compensated	50 PSI	344.74 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV		Male Tube	0.13 in	3.23 mm	PCB	8-DIP Module		50 PSI	344.74 kPa

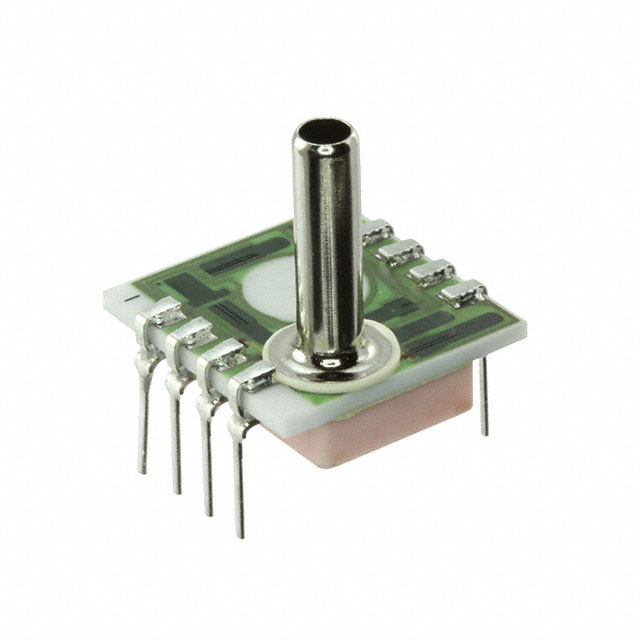

TE Connectivity AMP Connectors 1230-015A-3L	0.1 %			Barbless	Wheatstone Bridge	Temperature Compensated	15 PSI	103.42 kPa	125 °C	-40 C	Through Hole	0 mV	100 mV		Male Tube	0.13 in	3.23 mm	PC Pin	8-DIP Module	Board Mount	45 PSI	310.26 kPa
