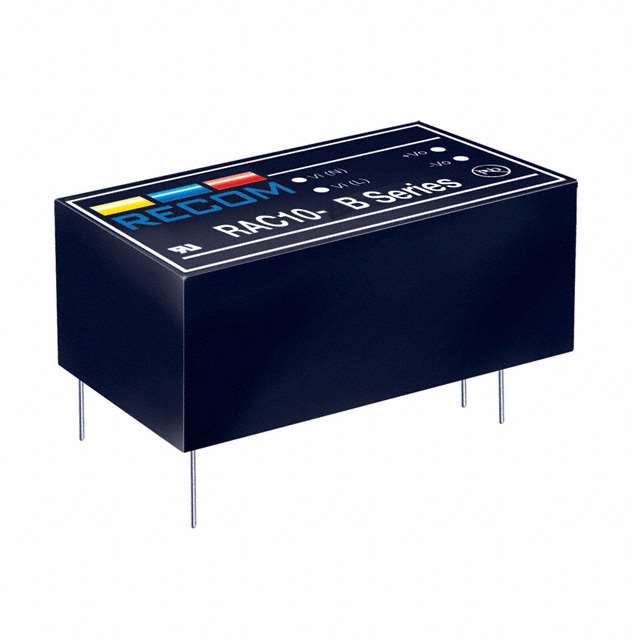

RAC10-SB Series

Catalog

AC/DC POWER MODULES 10W AC/DC 3KV REG 90-264VIN 5VOUT

Part	Load Regulation	Weight	Weight	Line Regulation	Number of Outputs	Efficiency	Applications	Approval Agency	Package / Case	Voltage - Input [Max]	Voltage - Input [Min]	Mounting Type	Current - Output (Max) [Max]	Voltage - Output 1	Features	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Type

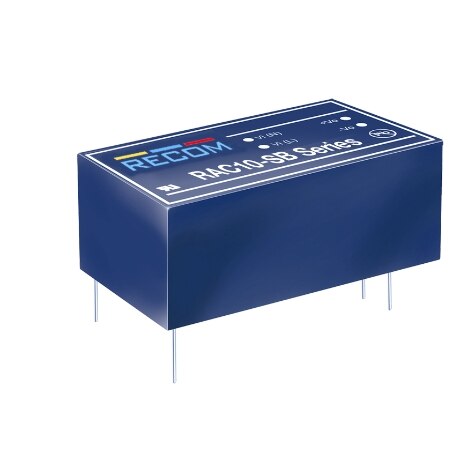

Recom Power RAC10-05SB	0.5 %	53.98 g	0.119 lb	0.3 %	1	72 %	ITE (Commercial)	CE cULus	4-DIP Module	264 VAC	90 VAC	Through Hole	2 A	5 V	SCP	70 °C	-25 °C	10 W	23.8 mm	0.94 "	2.06 "	52.3 mm	27.2 mm	1.07 in	Enclosed
Recom Power RAC10-12SB	0.5 %	53.98 g	0.119 lb	0.3 %	1	76 %	ITE (Commercial)	CE cULus	4-DIP Module	264 VAC	90 VAC	Through Hole	833 mA	12 V	SCP	70 °C	-25 °C	10 W	23.8 mm	0.94 "	2.06 "	52.3 mm	27.2 mm	1.07 in	Enclosed
Recom Power RAC10-24SB	0.5 %	53.98 g	0.119 lb	0.3 %	1	72 %	ITE (Commercial)	CE cULus	4-DIP Module	264 VAC	90 VAC	Through Hole		24 V	SCP	70 °C	-25 °C	10 W	23.8 mm	0.94 "	2.06 "	52.3 mm	27.2 mm	1.07 in	Enclosed
