Pts5400 Series Series

Ultra Low Profile SMT Top Actuated

Catalog

Ultra Low Profile SMT Top Actuated

Part	Termination Style	Circuit	Outline [y]	Outline [x]	Operating Force	Switch Travel	Actuator Type	Switch Function	Illumination	Contact Rating @ Voltage	Actuator Height off PCB, Vertical [z]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Mechanical Life	Mounting Type

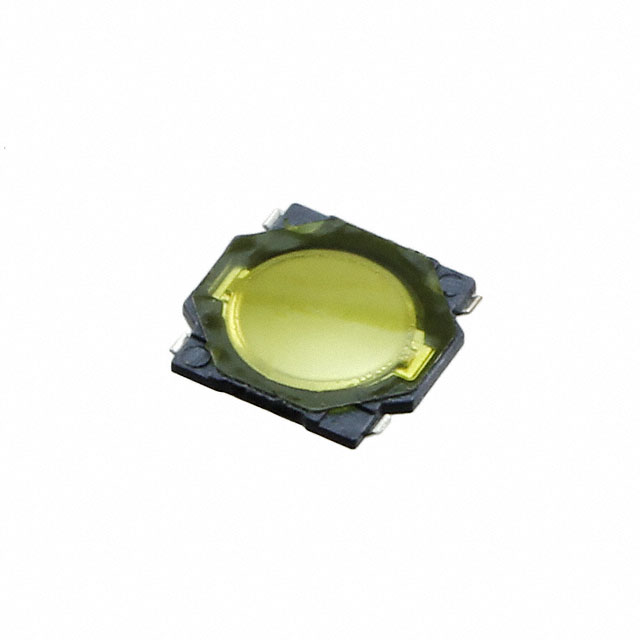

LITTELFUSE PTS540JM035SMTRLFS	J Lead	SPST-NO	3.7 mm	3.7 mm	160 gf	0.15 mm	Flush	Off-Mom	Non-Illuminated	0.05 A 12 VDC	0.35 mm	85 °C	-30 ░C	Top Actuated	500000 Cycles	Surface Mount
LITTELFUSE PTS540JK035SMTRLFS	J Lead	SPST-NO	3.7 mm	3.7 mm		0.15 mm	Flush	Off-Mom	Non-Illuminated	0.05 A 12 VDC	0.35 mm	85 °C	-30 ░C	Top Actuated	300000 Cycles	Surface Mount

Catalog

Ultra Low Profile SMT Top Actuated

Description

C&K’s PTS540 series of ultra low profile SMT top actuated switches are perfect for consumer electronics such as Bluetooth headsets, MP3 accessories and remote controls. Known for being reliable and long-lasting, PTS540 switches are available with a 3.7 x 3.7mm footprint and a 0.35mm thickness.
