5490 Series

Catalog

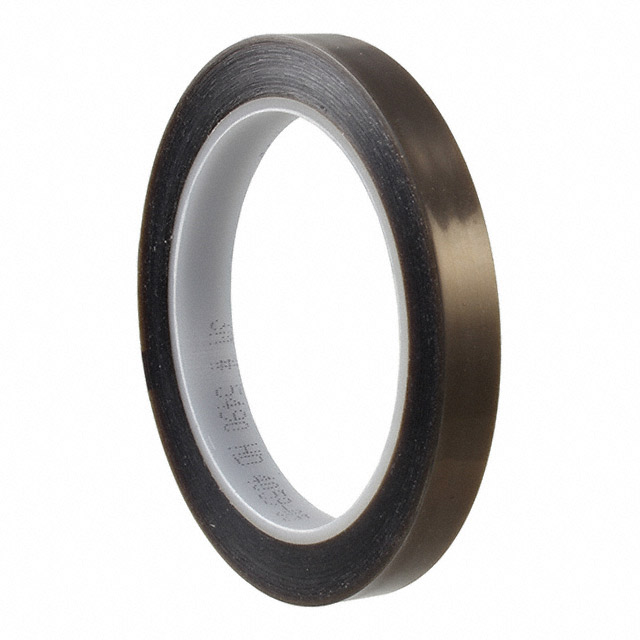

TAPE FILM BROWN 1/4"X36YDS

Part	Shelf Life	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Min]	Color	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Tape Type	Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Length	Length	Length	Width	Width	Width	Usage	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Temperature Range [Max]	Width [x]	Width [x]
3M Electronic Specialty 5490-1/4"X36YD	24 Months	Date of Manufacture	27 °C	80 °F	60 °F	16 °C	Brown	2 mils	0.002 "	0.051 mm	Film	Silicone	1.7 mils	0.0017 in	0.043 mm	0.094 mm	0.0037 in	3.7 mils	32.9 m	108 ft	36 yd	0.25 in	0.25 in	6.35 mm	Wire Wrapping
3M Electronic Specialty 5490-2"X36YD	24 Months	Date of Manufacture	27 °C	80 °F	60 °F	16 °C	Gray	2 mils	0.002 "	0.051 mm	Film	Silicone	1.7 mils	0.0017 in	0.043 mm	0.094 mm	0.0037 in	3.7 mils	32.9 m	108 ft	36 yd				Masking Protection Sealing	-54 °C	-65 °F -54 °C	204 °C	204 °C 400 °F	50.8 mm	2 in
3M Electronic Specialty 5490-1/2"X36YD	24 Months	Date of Manufacture	27 °C	80 °F	60 °F	16 °C	Gray	2 mils	0.002 "	0.051 mm	Film	Silicone	1.7 mils	0.0017 in	0.043 mm	0.094 mm	0.0037 in	3.7 mils	32.9 m	108 ft	36 yd	0.5 "	0.5 in	12.7 mm	Masking Protection Sealing	-54 °C	-65 °F -54 °C	204 °C	204 °C 400 °F
