UTS6G Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN PLUG HSG FMALE 4POS INLINE

Part	Features	Connector Type	Note	Contact Shape	Shell Size - Insert Width	Shell Size - Insert Length	Housing Color	Shell Material	Number of Positions	Type	Contact Type	Material Flammability Rating	Mounting Type	Contact Size	Orientation	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Shielding	Operating Temperature (Min)	Operating Temperature (Max)	Position Types

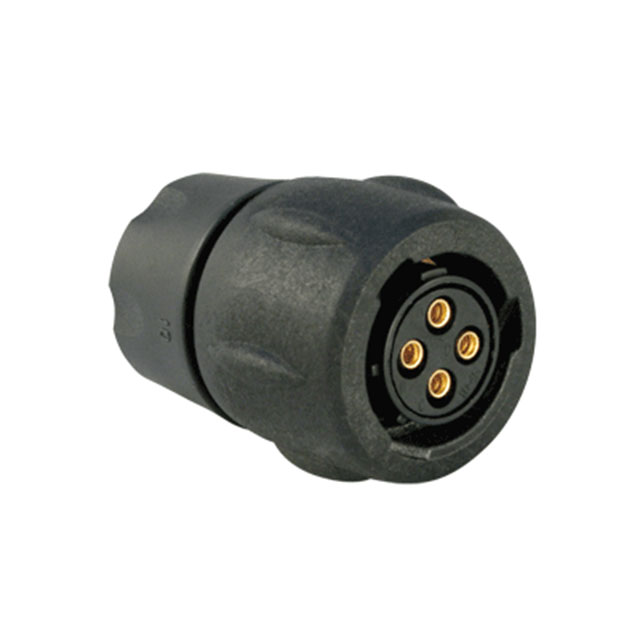

Amphenol Aerospace Operations UTS6GN104S	Coupling Nut	Plug Housing	Contacts Not Included	Circular	4 mm	10 mm	Black	Thermoplastic	4	For Female Sockets	Crimp	UL94 V-0	Free Hanging (In-Line)	16 S	N (Normal)	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	-40 °C	105 °C

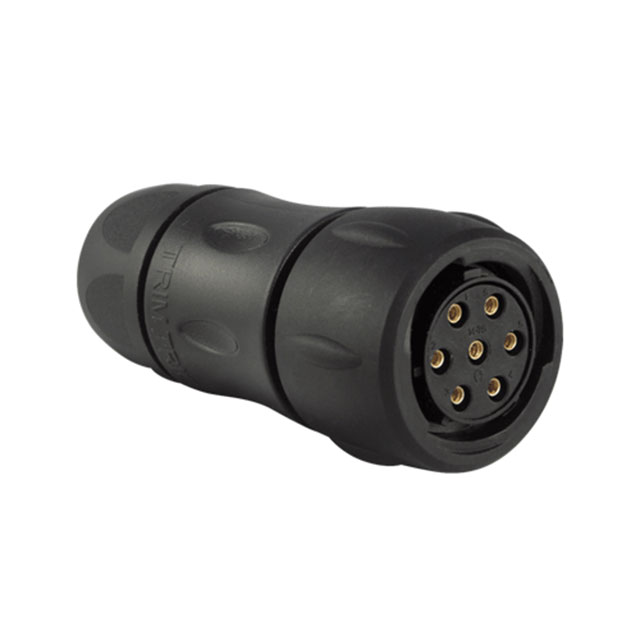

Amphenol Aerospace Operations UTS6GJC147S	Backshell Coupling Nut	Plug Housing	Contacts Not Included	Circular	7 mm	14 mm	Black	Thermoplastic	7	For Female Sockets	Crimp	UL94 V-0	Free Hanging (In-Line)	16 S	N (Normal)	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	-40 °C	105 °C	PE

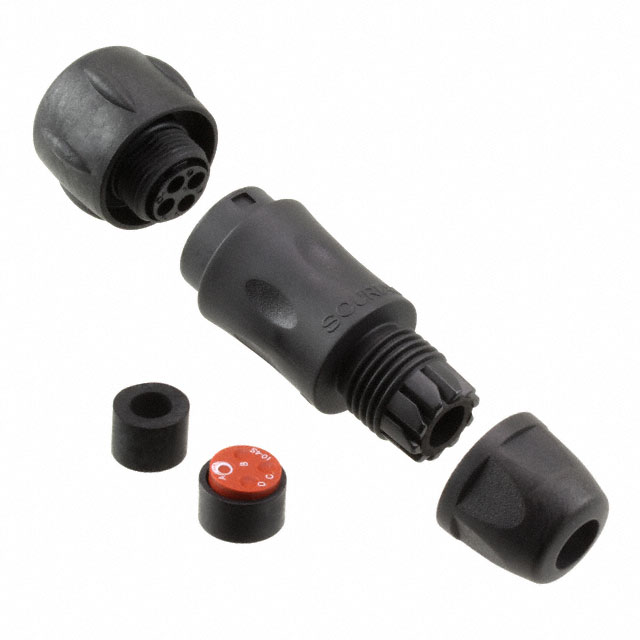

Amphenol Aerospace Operations UTS6GJC104S	Backshell Coupling Nut	Plug Housing	Contacts Not Included	Circular	4 mm	10 mm	Black	Thermoplastic	4	For Female Sockets	Crimp	UL94 V-0	Free Hanging (In-Line)	16 S	N (Normal)	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	-40 °C	105 °C

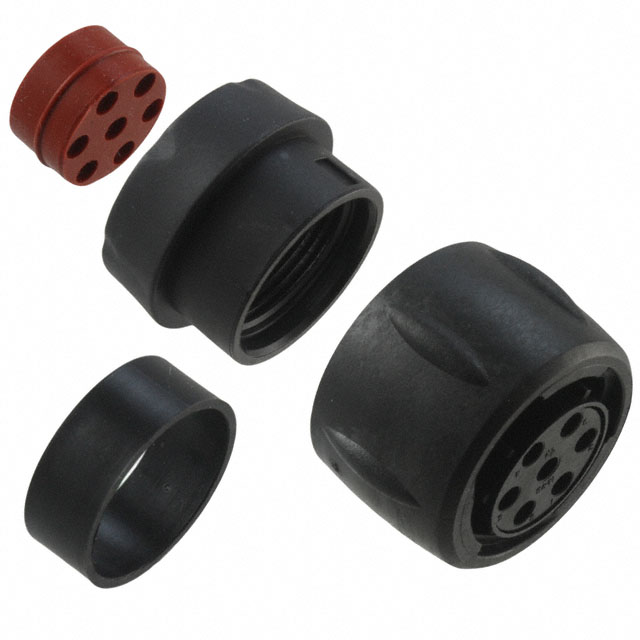

Amphenol Aerospace Operations UTS6GN147S	Coupling Nut	Plug Housing	Contacts Not Included	Circular	7 mm	14 mm	Black	Thermoplastic	7	For Female Sockets	Crimp	UL94 V-0	Free Hanging (In-Line)	16 S	N (Normal)	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	-40 °C	105 °C	PE

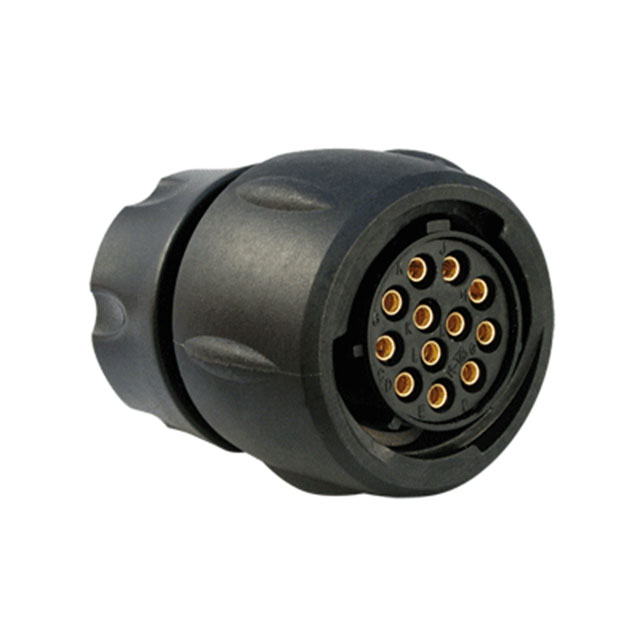

Amphenol Aerospace Operations UTS6GN1412S	Coupling Nut	Plug Housing	Contacts Not Included	Circular	12 mm	14 mm	Black	Thermoplastic	12	For Female Sockets	Crimp	UL94 V-0	Free Hanging (In-Line)	16 S	N (Normal)	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	-40 °C	105 °C

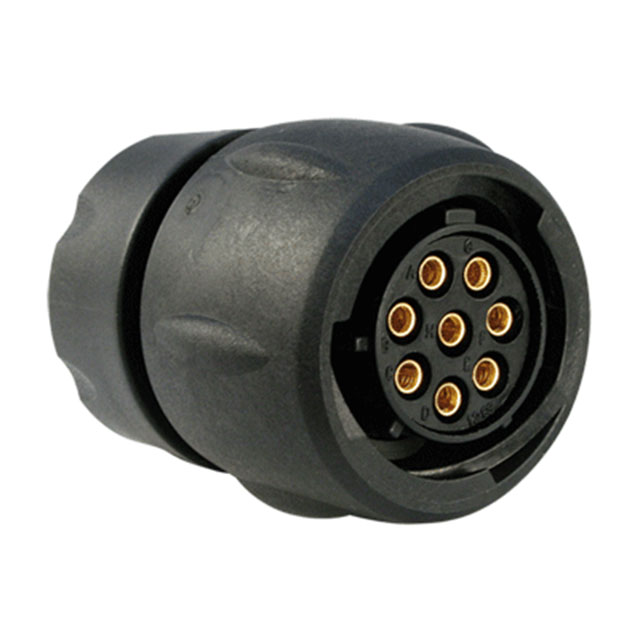

Amphenol Aerospace Operations UTS6GN128S	Coupling Nut	Plug Housing	Contacts Not Included	Circular	8 mm	12 mm	Black	Thermoplastic	8	For Female Sockets	Crimp	UL94 V-0	Free Hanging (In-Line)	16 S	N (Normal)	Bayonet Lock	Dust Tight Water Resistant Waterproof	IP68 IP69K	Unshielded	-40 °C	105 °C
