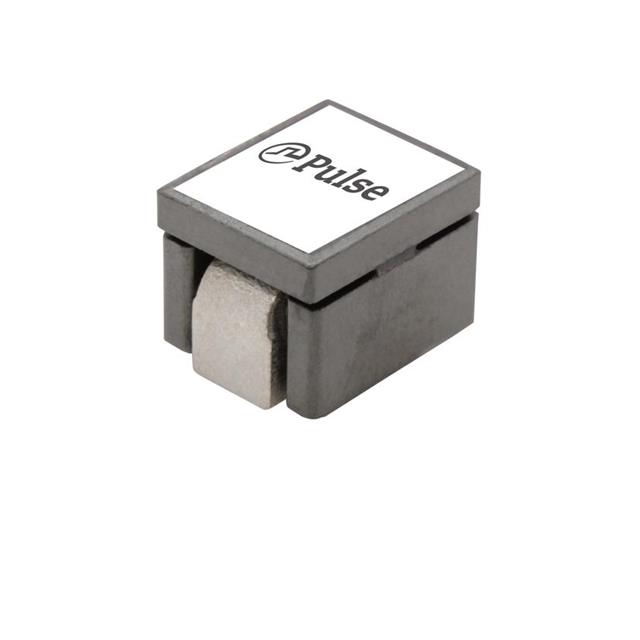

PGL6189 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD TLVR 50NH 80A 0.04MOHM
| Part | Tolerance | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | Shielding | Inductance | Package / Case | Current - Saturation (Isat) | DC Resistance (DCR) | Current Rating (Amps) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance Frequency - Test | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 15 % | 0.394 in | 0.327 " | 8.3 mm | 10 mm | Surface Mount | Unshielded | 50 nH | Nonstandard | 148 A | 0.04 mOhm | 80 A | 8 mm | 0.315 in | 100 kHz | 130 °C | -40 C |
