TOP258 Series

Catalog

IC: PMIC; AC/DC SWITCHER,SMPS CONTROLLER; 59.4÷145KHZ; ESIP-7F

Part	Voltage - Breakdown	Supplier Device Package	Fault Protection	Frequency - Switching	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Power (Watts)	Duty Cycle	Output Isolation	Topology	Mounting Type	Package / Case	Package / Case
POWER INTEGRATIONS TOP258LN	700 V	eSIP-7F	Current Limiting Over Temperature Over Voltage	66 kHz 132 kHz	-40 °C	150 °C	6 Leads 7-SSIP Exposed Pad Formed Leads	122 W	78 %	Isolated	Flyback	Through Hole
POWER INTEGRATIONS TOP258MG	700 V	SDIP-10C	Current Limiting Over Temperature Over Voltage	66 kHz	-40 °C	150 °C	10-SDIP 9 Leads	48 W	78 %	Isolated	Flyback	Through Hole	0.3 in	7.62 mm

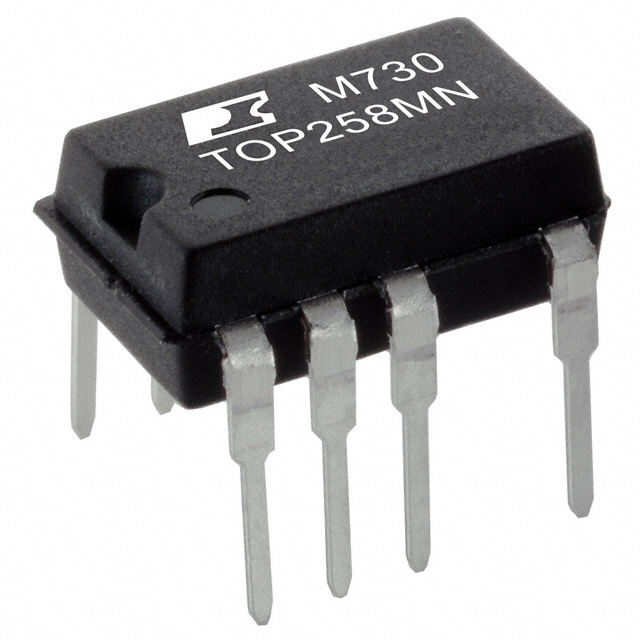

POWER INTEGRATIONS TOP258MN	700 V	SDIP-10C	Current Limiting Over Temperature Over Voltage	66 kHz	-40 °C	150 °C	10-SDIP 9 Leads	48 W	78 %	Isolated	Flyback	Through Hole	0.3 in	7.62 mm
POWER INTEGRATIONS TOP258EG	700 V	eSIP-7C	Current Limiting Over Temperature Over Voltage	66 kHz 132 kHz	-40 °C	150 °C	6 Leads 7-SSIP Exposed Pad Formed Leads	195 W	78 %	Isolated	Flyback	Through Hole
