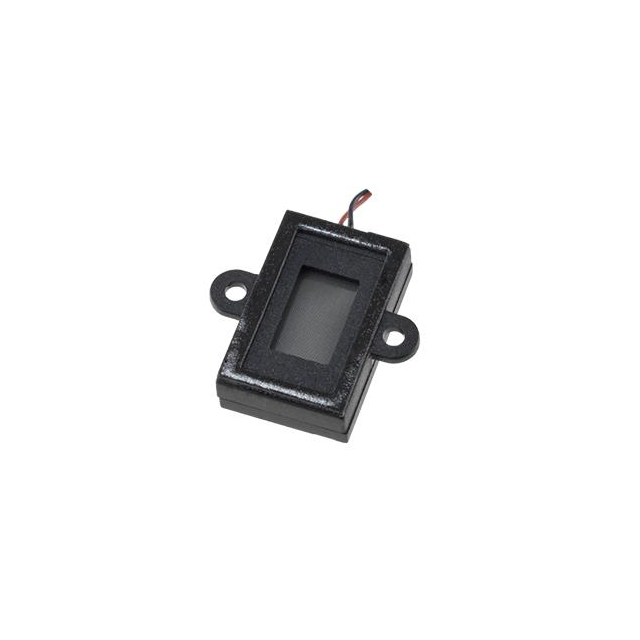

CES-20134 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

SPEAKER 8OHM 800MW TOP PORT 91DB

Part	Frequency Range [Min]	Frequency Range [Max]	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Shape	Frequency - Self Resonant	Efficiency - Testing	Port Location	Power - Max [Max]	Material - Cone [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Type	Material - Magnet	Impedance	Technology	Efficiency - dBA	Power - Rated	Efficiency - Type	Distortion Rating	Operating Temperature [Min]	Operating Temperature [Max]

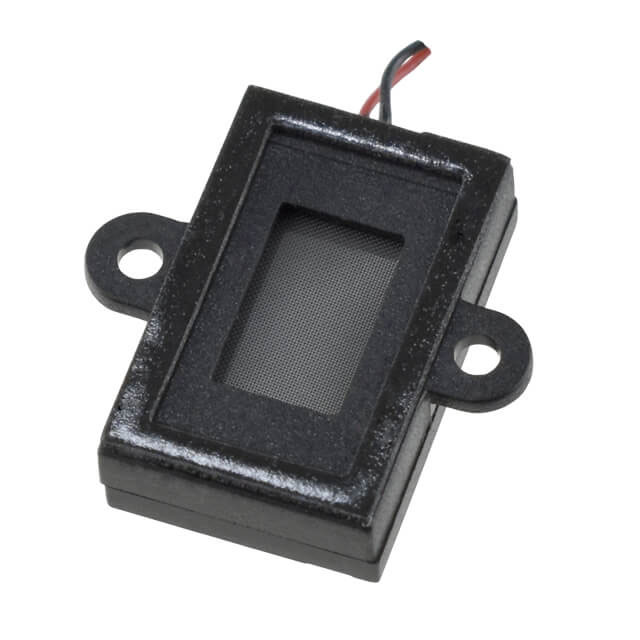

Same Sky (Formerly CUI Devices) CES-20134-088PM	500 Hz	20 kHz	Wire Leads	20 mm	0.633 in	16.09 mm	0.787 "	Rectangular	1300 Hz	800mW/100mm	Top	1 W	Polyetheretherketone (PEEK)	0.192 "	4.87 mm	General Purpose Enclosure Included	Nd-Fe-B	8 Ohms	Magnetic	91 dBA	0.8 W	Sound Pressure Level (SPL)
Same Sky (Formerly CUI Devices) CES-20134-088PMA	500 Hz	20 kHz	Wire Leads with Connector	20 mm	0.633 in	16.09 mm	0.787 "	Rectangular	1300 Hz	800mW/100mm	Top	1 W	Polyetheretherketone (PEEK)	0.192 "	4.87 mm	General Purpose Enclosure Included	Nd-Fe-B	8 Ohms	Magnetic	91 dBA	0.8 W	Sound Pressure Level (SPL)
Same Sky (Formerly CUI Devices) CES-20134-088PMA	500 Hz	20 kHz	Wire Leads with Connector	20 mm	0.633 in	16.09 mm	0.787 "	Rectangular	1300 Hz	800mW/100mm	Top	1 W	Polyetheretherketone (PEEK)	0.192 "	4.87 mm	General Purpose	Nd-Fe-B	8 Ohms	Magnetic	91 dBA	0.8 W	Sound Pressure Level (SPL)	10 %	-20 ░C	70 °C
Same Sky (Formerly CUI Devices) CES-20134-088PMB	500 Hz	20 kHz	Wire Leads with Connector	20 mm	0.633 in	16.09 mm	0.787 "	Rectangular	1300 Hz	800mW/100mm	Top	1 W	Polyetheretherketone (PEEK)	0.192 "	4.87 mm	General Purpose	Nd-Fe-B	8 Ohms	Magnetic	91 dBA	0.8 W	Sound Pressure Level (SPL)	10 %	-20 ░C	70 °C
Same Sky (Formerly CUI Devices) CES-20134-088PM	500 Hz	20 kHz	Wire Leads	20 mm	0.633 in	16.09 mm	0.787 "	Rectangular	1300 Hz	800mW/100mm	Top	1 W	Polyetheretherketone (PEEK)	0.192 "	4.87 mm	General Purpose Enclosure Included	Nd-Fe-B	8 Ohms	Magnetic	91 dBA	0.8 W	Sound Pressure Level (SPL)	10 %	-20 ░C	70 °C
Same Sky (Formerly CUI Devices) CES-20134-088PMB	500 Hz	20 kHz	Wire Leads with Connector	20 mm	0.633 in	16.09 mm	0.787 "	Rectangular	1300 Hz	800mW/100mm	Top	1 W	Polyetheretherketone (PEEK)	0.192 "	4.87 mm	General Purpose Enclosure Included	Nd-Fe-B	8 Ohms	Magnetic	91 dBA	0.8 W	Sound Pressure Level (SPL)
