LT1529 Series

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

3A LOW DROPOUT REGULATORS WITH MICROPOWER QUIESCENT CURRENT AND SHUTDOWN

Part	Output Configuration	Package / Case	Supplier Device Package	Control Features	Mounting Type	PSRR	Current - Output	Protection Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Max) [Max]	Number of Regulators	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Voltage Dropout (Max) [Max]	Current - Supply (Max) [Max]	Output Type	Voltage - Output (Max)
Analog Devices Inc./Maxim Integrated LT1529IQ-5#TRPBF	Positive	D2PAK TO-263-6 TO-263BA	DDPAK-5	Enable	Surface Mount	62 dB	3 A	Over Current Over Temperature Reverse Polarity	-45 °C	125 °C	15 V	1	100 µA	5 V	0.95 V	160 mA
Analog Devices Inc./Maxim Integrated LT1529CT#PBF	Positive	TO-220-5	TO-220-5	Enable	Through Hole	62 dB	3 A	Over Current Over Temperature Reverse Polarity	0 °C	125 °C	15 V	1	100 µA	3.75 V	0.95 V	160 mA	Adjustable	14 V
Analog Devices Inc./Maxim Integrated LT1529CT-3.3#06PBF	Positive	TO-220-5	TO-220-5 Flow 6	Enable	Through Hole	62 dB	3 A	Over Current Over Temperature Reverse Polarity	0 °C	125 °C	15 V	1	100 µA	3.3 V	0.95 V	160 mA
Analog Devices Inc./Maxim Integrated LT1529IQ#PBF	Positive	D2PAK TO-263-6 TO-263BA	DDPAK-5	Enable	Surface Mount	62 dB	3 A	Over Current Over Temperature Reverse Polarity	-45 °C	125 °C	15 V	1	100 µA	3.75 V	0.95 V	160 mA	Adjustable	14 V
Analog Devices Inc./Maxim Integrated LT1529IT#PBF	Positive	TO-220-5	TO-220-5	Enable	Through Hole	62 dB	3 A	Over Current Over Temperature Reverse Polarity	-45 °C	125 °C	15 V	1	100 µA	3.75 V	0.95 V	160 mA	Adjustable	14 V
Analog Devices Inc./Maxim Integrated LT1529IQ-5#PBF	Positive	D2PAK TO-263-6 TO-263BA	DDPAK-5	Enable	Surface Mount	62 dB	3 A	Over Current Over Temperature Reverse Polarity	-45 °C	125 °C	15 V	1	100 µA	5 V	0.95 V	160 mA
Analog Devices Inc./Maxim Integrated LT1529IQ#TRPBF	Positive	D2PAK TO-263-6 TO-263BA	DDPAK-5	Enable	Surface Mount	62 dB	3 A	Over Current Over Temperature Reverse Polarity	-45 °C	125 °C	15 V	1	100 µA	3.75 V	0.95 V	160 mA	Adjustable	14 V
Analog Devices Inc./Maxim Integrated LT1529CQ-5#PBF	Positive	D2PAK TO-263-6 TO-263BA	DDPAK-5	Enable	Surface Mount	62 dB	3 A	Over Current Over Temperature Reverse Polarity	0 °C	125 °C	15 V	1	100 µA	5 V	0.95 V	160 mA

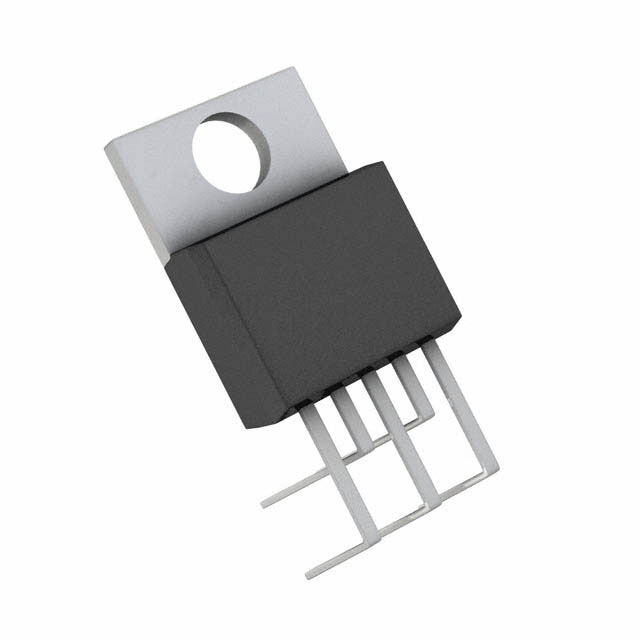

Analog Devices Inc./Maxim Integrated LT1529CT-5#30PBF	Positive	TO-220-5 Formed Leads	TO-220-5 Flow 30	Enable	Through Hole	62 dB	3 A	Over Current Over Temperature Reverse Polarity	0 °C	125 °C	15 V	1	100 µA	5 V	0.95 V	160 mA
Analog Devices Inc./Maxim Integrated LT1529IT#06PBF	Positive	TO-220-5	TO-220-5 Flow 6	Enable	Through Hole	62 dB	3 A	Over Current Over Temperature Reverse Polarity	-45 °C	125 °C	15 V	1	100 µA	3.75 V	0.95 V	160 mA	Adjustable	14 V
