TS03-66 Series

Manufacturer: Same Sky (Formerly CUI Devices)

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; THT; NONE; 1.6N

Part	Actuator Material	Mounting Type	Switch Function	Switch Travel	Actuator Type	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Actuator Orientation	Termination Style	Circuit	Illumination	Outline [y]	Outline [x]	Operating Force	Mechanical Life	Actuator Height off PCB, Vertical [z]	Actuator Height off PCB, Vertical
Same Sky (Formerly CUI Devices) TS03-66-70-BK-160-LCR-D-67	Nylon 6/6 Polyamide (PA66)	Through Hole	Off-Mom	0.25 mm	Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	160 gf	80000 Cycles	7 mm
Same Sky (Formerly CUI Devices) TS03-66-70-BK-160-LCR-D-67		Through Hole	Off-Mom		Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	160 gf		7 mm
Same Sky (Formerly CUI Devices) TS03-66-70-BK-260-LCR-D-67	Nylon 6/6 Polyamide (PA66)	Through Hole	Off-Mom	0.25 mm	Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	260 gf	60000 Cycles	7 mm
Same Sky (Formerly CUI Devices) TS03-66-95-BK-160-LCR-D-67		Through Hole	Off-Mom		Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	160 gf		9.5 mm

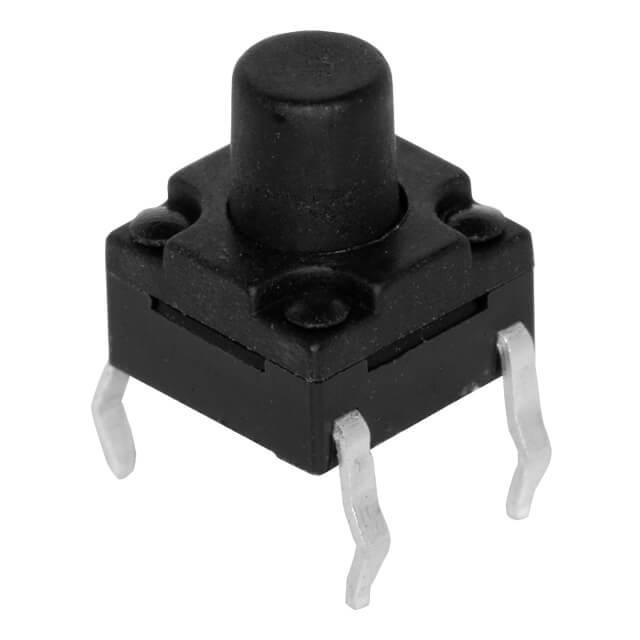

Same Sky (Formerly CUI Devices) TS03-66-50-BK-160-LCR-D-67		Through Hole	Off-Mom		Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	160 gf		5 mm
Same Sky (Formerly CUI Devices) TS03-66-70-BK-260-LCR-D-67		Through Hole	Off-Mom		Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	260 gf		7 mm
Same Sky (Formerly CUI Devices) TS03-66-80-BK-160-LCR-D-67	Nylon 6/6 Polyamide (PA66)	Through Hole	Off-Mom	0.25 mm	Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	160 gf	80000 Cycles		8 mm
Same Sky (Formerly CUI Devices) TS03-66-50-BK-260-LCR-D-67	Nylon 6/6 Polyamide (PA66)	Through Hole	Off-Mom	0.25 mm	Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	260 gf	60000 Cycles	5 mm
Same Sky (Formerly CUI Devices) TS03-66-80-BK-260-LCR-D-67		Through Hole	Off-Mom		Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	260 gf			8 mm
Same Sky (Formerly CUI Devices) TS03-66-95-BK-260-LCR-D-67	Nylon 6/6 Polyamide (PA66)	Through Hole	Off-Mom	0.25 mm	Standard	IP67 - Dust Tight Waterproof	80 °C	-30 ░C	0.05 A 12 VDC	Top Actuated	PC Pin	SPST-NO	Non-Illuminated	6.1 mm	6.1 mm	260 gf	60000 Cycles	9.5 mm
