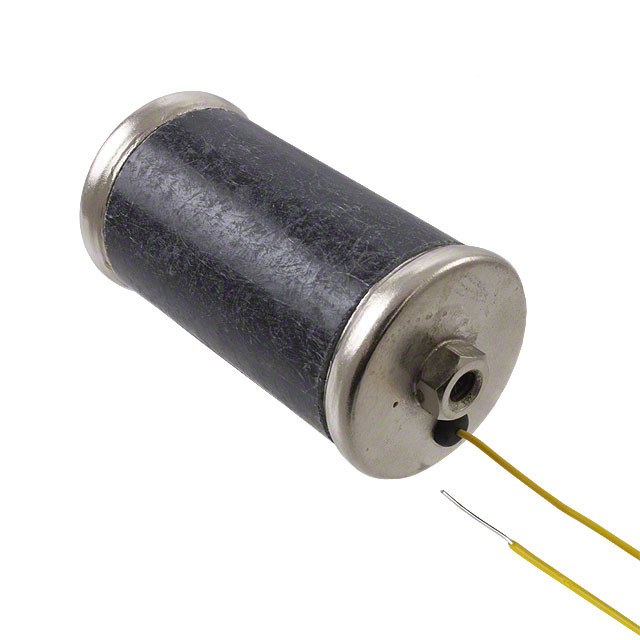

FBMOV Series

Catalog

825V 420V 320V 510V PLUGIN VARISTORS ROHS

Part	Maximum DC Volts [Max]	Varistor Voltage (Min) [Min]	Energy	Maximum AC Volts [Max]	Varistor Voltage (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Varistor Voltage (Typ)	Number of Circuits	Features	Current - Surge	Mounting Type	Package / Case	Capacitance @ Frequency	Maximum AC Volts	Varistor Voltage (Max)
Littelfuse/Commercial Vehicle Products FBMOV320M	420 V	459 V	780 J	320 V	561 V	85 C	-55 C	510 V	1	Thermally Protected	40 kA	Screw Mount	Axial Cylinder	2160 pF
Littelfuse/Commercial Vehicle Products FBMOV300M	385 V	423 V	740 J		517 V	85 C	-55 C	470 V	1	Thermally Protected	40 kA	Screw Mount	Axial Cylinder	2300 pF	300 V
Littelfuse/Commercial Vehicle Products FBMOV150M	200 V	216 V	440 J	150 V	264 V	85 C	-55 C	240 V	1	Thermally Protected	40 kA	Screw Mount	Axial Cylinder	4600 pF
Littelfuse/Commercial Vehicle Products FBMOV230M	300 V	324 V	600 J	230 V	396 V	85 C	-55 C	360 V	1	Thermally Protected	40 kA	Screw Mount	Axial Cylinder	3000 pF
Littelfuse/Commercial Vehicle Products FBMOV140M	180 V	198 V	420 J	140 V	242 V	85 C	-55 C	220 V	1	Thermally Protected	40 kA	Screw Mount	Axial Cylinder	5000 pF
Littelfuse/Commercial Vehicle Products FBMOV130M	170 V	184.5 V	380 J	130 V		85 C	-55 C	205 V	1	Thermally Protected	40 kA	Screw Mount	Axial Cylinder	5600 pF		225.5 V
