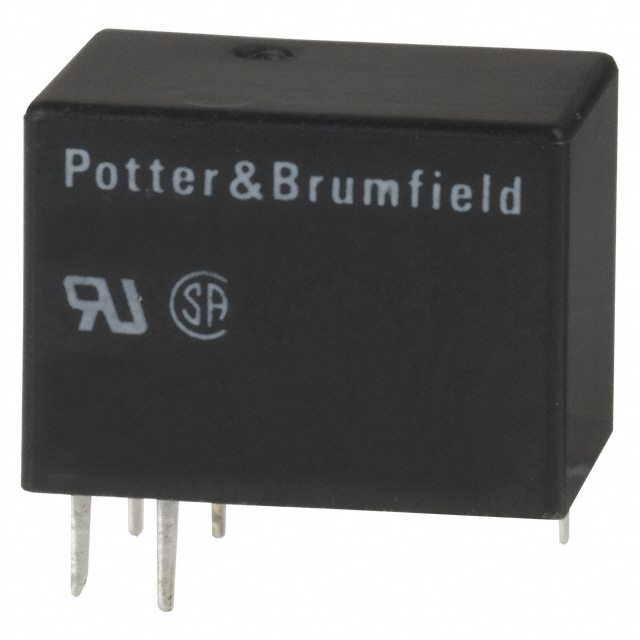

T81H5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY TELECOM SPDT 1A 5V
| Part | Coil Resistance | Load - Max Switching | Contact Rating (Current) | Relay Type | Coil Voltage | Contact Form | Release Time | Switching Voltage [Max] | Coil Current | Coil Type | Termination Style | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Operate Time | Must Release Voltage | Mounting Type | Approval Agency | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 125 Ohms | 60 W 125 VA | 1 A | Telecom | 5 VDC | SPDT (1 Form C) | 7 ms | 60 VDC 125 VAC | 40 mA | Non Latching | PC Pin | Gold (Au) Silver Palladium (AgPd) | -30 ░C | 70 °C | 10 ms | 0.25 VDC | Through Hole | CSA UR | 3.5 VDC |
TE Connectivity AMP Connectors | 60 W 125 VA | 1 A | Telecom | 24 VDC | SPDT (1 Form C) | 7 ms | 60 VDC 125 VAC | 8.6 mA | Non Latching | PC Pin | Gold (Au) Silver Palladium (AgPd) | -30 ░C | 70 °C | 10 ms | 1.2 VDC | Through Hole | CSA UR | 16.8 VDC |
