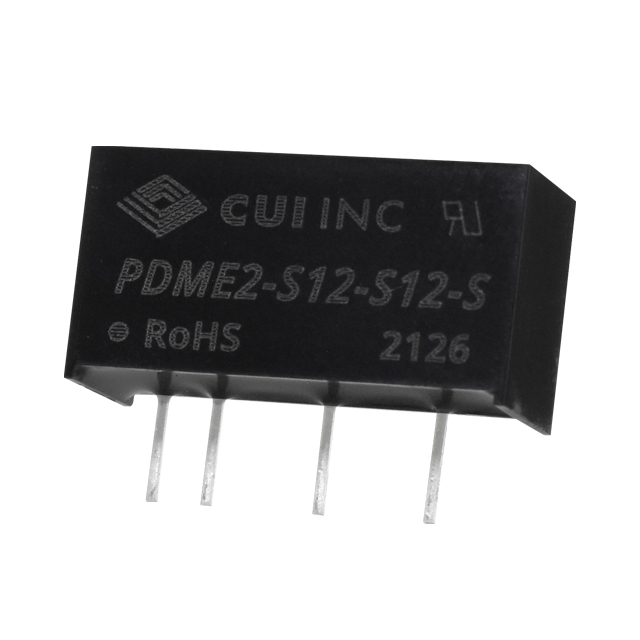

PDME2-S Series
Manufacturer: CUI Inc.
Beta
⌘K
ISOLATED DC/DC CONVERTERS - THROUGH HOLE THE FACTORY IS CURRENTLY NOT ACCEPTING ORDERS FOR THIS PRODUCT.
| Part | Features | Mounting Type | Voltage - Output 2 | Voltage - Input (Min) [Min] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Efficiency | Power (Watts) | Package / Case | Voltage - Input (Max) [Max] | Type | Approval Agency | Standard Number | Number of Outputs | Voltage - Isolation | Voltage - Output 1 | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | Adjustable Output | Through Hole | -5 V | 13.5 V | 0.4 " | 19.7 mm | 7.1 mm | 0.77 in | 10.2 mm | 0.28 in | 80 % | 2 W | 6-SIP Module 5 Leads | 16.5 V | Isolated Module | CE cURus | 62368-1 | 2 | 1.5 kV | 5 V | ITE (Commercial) | 105 C | -40 °C | |
CUI Inc. | Adjustable Output | Through Hole | -24 V | 10.8 V | 0.4 " | 19.7 mm | 7.1 mm | 0.77 in | 10.2 mm | 0.28 in | 83 % | 2.016 W | 6-SIP Module 5 Leads | 13.2 V | Isolated Module | CE cURus | 62368-1 | 2 | 1.5 kV | 24 V | ITE (Commercial) | 105 C | -40 °C | 42 mA |
