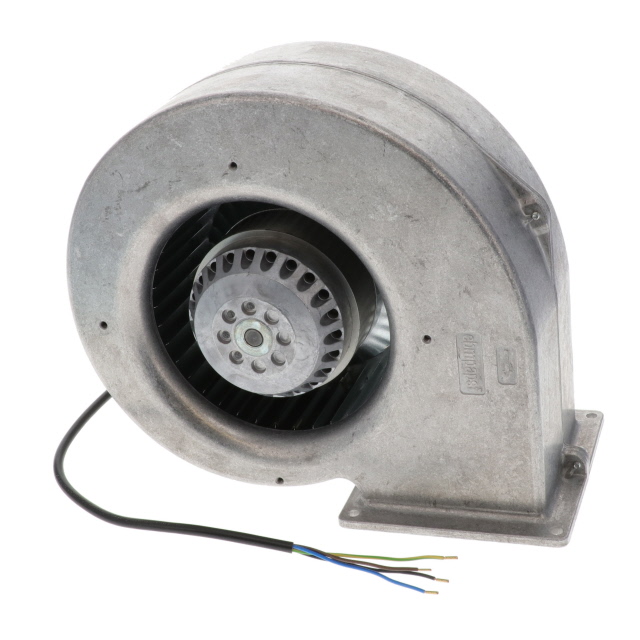

G2E160 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN BLOWER, G2E SERIES, IP44, MOTORIZED IMPELLER, 230 VAC, AC, 226.8 MM, 130 MM, 214.83 CFM
| Part | Material - Blade | Current Rating (Amps) | Material - Frame | Voltage - Rated | Weight | Weight | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) | Features | Ingress Protection | Width [y] | Fan Type | RPM | Size / Dimension [z] | Size / Dimension | Size / Dimension [x] | Termination | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Steel | 1.23 A | Aluminum | 230 VAC | 4 kg | 8.8 lbs | 0.2 in H2O | 49.8 Pa | -25 °C | 30 °C | 280 W | Capacitor Thermal Overload Protection (TOP) | IP44 | 130 mm | Blower | 2100 RPM | 227 mm | Rectangular/Rounded | 261 mm | 4 Wire Leads | Ball |
