2274 Series
Manufacturer: COTO TECHNOLOGY
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

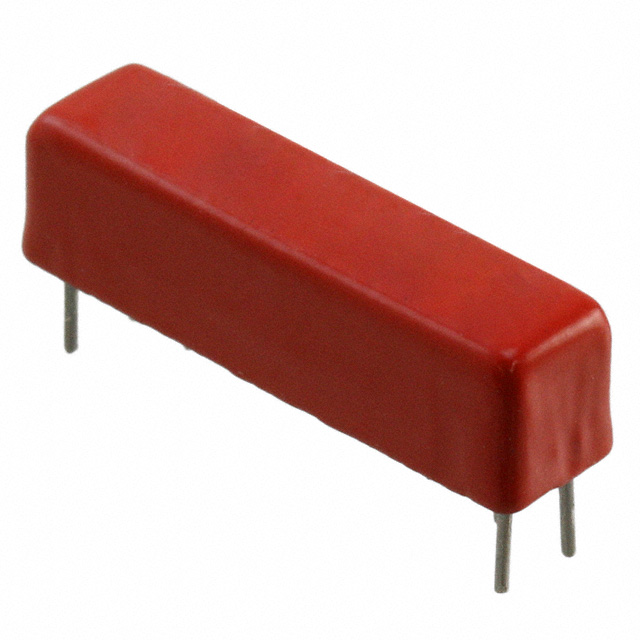

RELAY (REED), 1 FORM A, 12 VDC, 550 OHMS WITH CO-AXIAL SHIELD (+125C OPERATE TEMP.) /TUBE
| Part | Coil Resistance | Operating Temperature (Max) | Operating Temperature (Min) | Coil Current | Operate Time | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Seal Rating | Termination Style | Contact Rating (Current) | Release Time | Form A Count | Contact Form | Mounting Type | Coil Voltage | Must Operate Voltage | Coil Type | Must Release Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 COTO TECHNOLOGY | 550 Ohms | 125 °C | -20 °C | 21.8 mA | 0.5 ms | 200 VAC | 200 VDC | Hermetically Sealed | PC Pin | 500 mA | 0.1 ms | 1 | SPST-NO | Through Hole | 12 VAC | 6.7 VDC | Non Latching | 1 VDC |
COTO TECHNOLOGY | 100 Ohms | 125 °C | -20 °C | 50 mA | 0.5 ms | 200 VAC | 200 VDC | Hermetically Sealed | PC Pin | 500 mA | 0.1 ms | 1 | SPST-NO | Through Hole | 5 V | 2.5 VDC | Non Latching | 0.4 VDC |
