IRDM982 Series

Manufacturer: INFINEON

Catalog

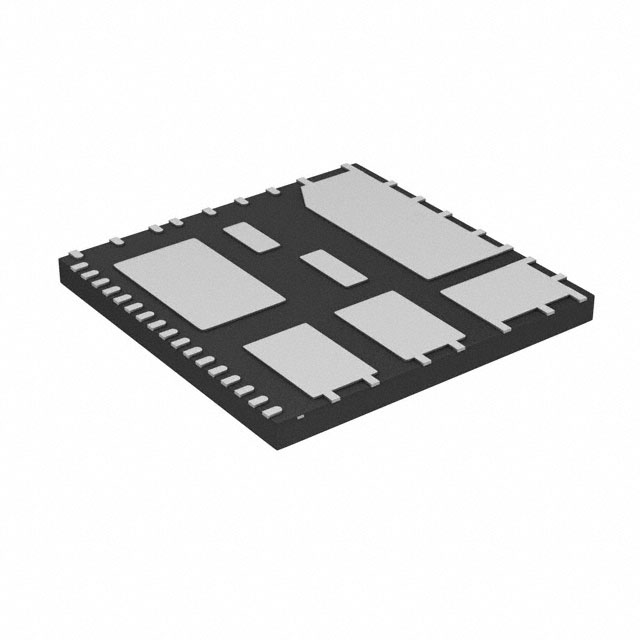

IC MTR DRIVER 13.5V-16.5V 40PQFN

Part	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Technology	Motor Type - AC, DC	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Interface	Voltage - Load [Min]	Voltage - Load [Max]	Function	Supplier Device Package	Package / Case
INFINEON IRDM982-025MB	-40 °C	150 °C	Half Bridge (3)	Power MOSFET	AC Synchronous	Surface Mount	16.5 V	13.5 V	Parallel	100 V	450 V	Driver - Fully Integrated Control and Power Stage	40-PQFN (12x12)	40-PowerVQFN
INFINEON IRDM982-025MBTR	-40 °C	150 °C	Half Bridge (3)	Power MOSFET	AC Synchronous	Surface Mount	16.5 V	13.5 V	Parallel	100 V	450 V	Driver - Fully Integrated Control and Power Stage	40-PQFN (12x12)	40-PowerVQFN
INFINEON IRDM982-035MB	-40 °C	150 °C	Half Bridge (3)	Power MOSFET	AC Synchronous	Surface Mount	16.5 V	13.5 V	Parallel	100 V	450 V	Driver - Fully Integrated Control and Power Stage	40-PQFN (12x12)	40-PowerVQFN
INFINEON IRDM982-035MBTR	-40 °C	150 °C	Half Bridge (3)	Power MOSFET	AC Synchronous	Surface Mount	16.5 V	13.5 V	Parallel	100 V	450 V	Driver - Fully Integrated Control and Power Stage	40-PQFN (12x12)	40-PowerVQFN
