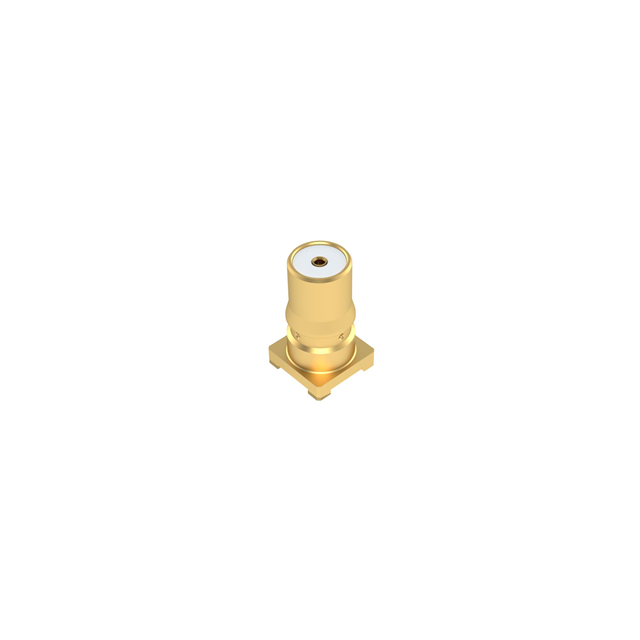

R1234278 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
QMA F SMT TR100
| Part | Voltage Rating | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Body Material | Body Finish | Connector Type | Number of Ports | Housing Color | Fastening Type | Center Contact Material | Frequency - Max [Max] | Contact Termination | Mounting Type | Impedance | Shield Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 V | Polytetrafluoroethylene (PTFE) | -40 C | 105 ░C | Gold | Brass | Gold | Receptacle Female Socket | 1 | Gold | Snap-On | Beryllium Copper | 6000 MHz | Solder | Surface Mount | 50 Ohms | Solder |
