TSE-P Series

Manufacturer: OptiFuse

Catalog

FUSE GLASS 5A 250VAC 2AG

Part	Melting I˛t	Response Time	Mounting Type	Breaking Capacity @ Rated Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Approval Agency	Fuse Type	Melting I²t	Package / Case [y]	Package / Case [x]	Package / Case
OptiFuse TSE-P-5A	37.27	Slow Blow	Through Hole	100 A	-55 C	125 °C	250 V	5 A	0.63 in	5 mm	0.197 in	16 mm	cURus UL 248	Cartridge Glass	37.27 I²t	15 mm	5 mm	2AG
OptiFuse TSE-P-3.15A		Slow Blow	Through Hole	100 A	-55 C	125 °C	250 V	3.15 A	0.63 in	5 mm	0.197 in	16 mm	UL 248	Cartridge Glass	9.83	15 mm	5 mm	2AG
OptiFuse TSE-P-8A	147.9	Slow Blow	Through Hole	100 A	-55 C	125 °C	250 V	8 A	0.63 in	5 mm	0.197 in	16 mm	cURus UL 248	Cartridge Glass	147.9 I²t	15 mm	5 mm	2AG

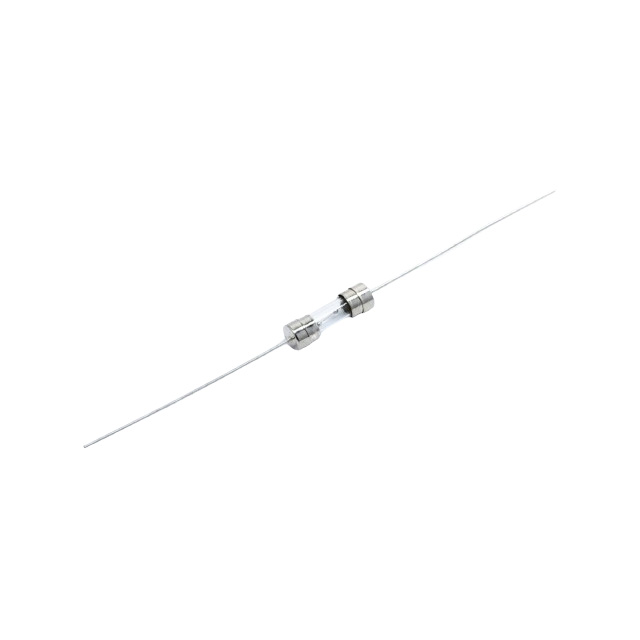

OptiFuse TSE-P-1.5A	6.635	Slow Blow	Through Hole	100 A	-55 C	125 °C	250 V	1.5 A	0.63 in	5 mm	0.197 in	16 mm	UL 248	Cartridge Glass	6.635	15 mm	5 mm	2AG
