GRPB142 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

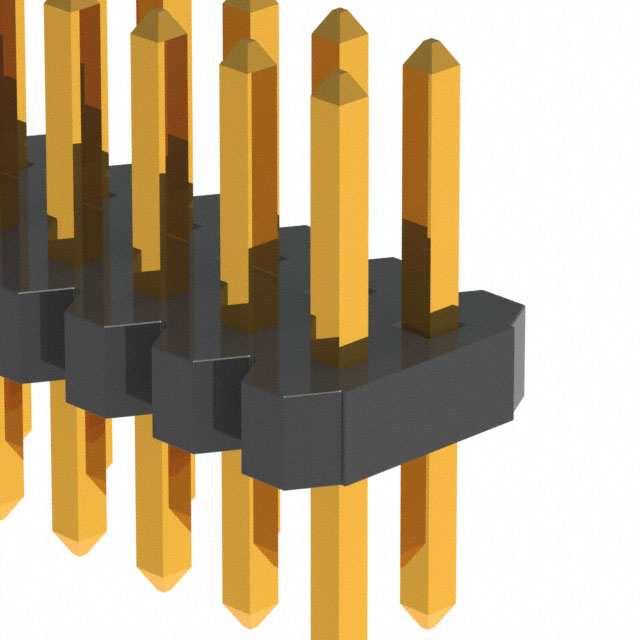

CONN HEADER VERT 28POS 1.27MM
| Part | Contact Type | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Contact Length - Post | Contact Length - Post | Number of Positions | Overall Contact Length [x] | Overall Contact Length | Fastening Type | Insulation Material | Mounting Type | Termination | Contact Shape | Contact Length - Mating | Contact Length - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Contact Finish - Post | Contact Material | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Style | Insulation Height | Insulation Height | Shrouding | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Male Pin | Header | -40 °C | 105 ░C | 2 | 0.091 in | 2.3 mm | 28 | 0.248 in | 6.3 mm | Push-Pull | Nylon 9T Polyamide (PA9T) | Through Hole | Solder | Square | 3 mm | 0.118 in | Flash | Flash | 0.05 in | 1.27 mm | Gold | Gold | Brass | 0.05 in | 1.27 mm | UL94 V-0 | Board to Board Cable | 0.039 " | 1 mm | Unshrouded | All |
Sullins Connector Solutions | Male Pin | Header | -40 °C | 105 ░C | 2 | 0.098 in | 2.5 mm | 28 | Push-Pull | Nylon 9T Polyamide (PA9T) | Through Hole Right Angle | Solder | Square | 3 mm | 0.118 in | Flash | Flash | 0.05 in | 1.27 mm | Gold | Gold | Brass | 0.05 in | 1.27 mm | UL94 V-0 | Board to Board Cable | 0.134 in | 3.4 mm | Unshrouded | All |
