725-034 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 34POS 0.100

Part	Card Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Card Thickness [Max]	Card Thickness [Min]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Number of Rows	Contact Finish	Contact Type	Read Out	Mounting Type	Contact Material	Number of Positions [custom]	Color	Material - Insulation	Number of Positions/Bay/Row	Termination Rows	Termination Rows [custom]	Number of Rows [custom]	Number of Positions/Bay/Row [custom]
EDAC Inc. 725-034-540-101	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female	1	Gold	Cantilever	Single	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic	34	1

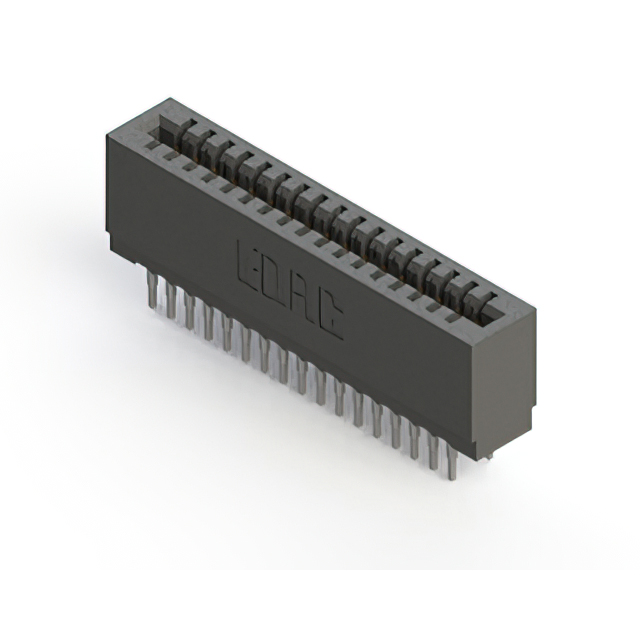

EDAC Inc. 725-034-522-201	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female		Gold	Cantilever	Dual	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic			2	2	17

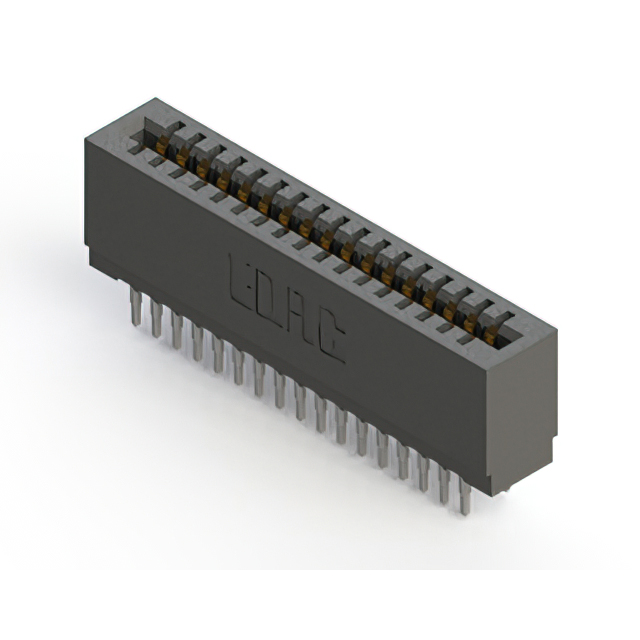

EDAC Inc. 725-034-525-201	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female		Gold	Cantilever	Dual	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic			2	2	17
EDAC Inc. 725-034-545-101	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female	1	Gold	Cantilever	Single	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic	34	1
EDAC Inc. 725-034-520-101	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female	1	Gold	Cantilever	Single	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic	34	1

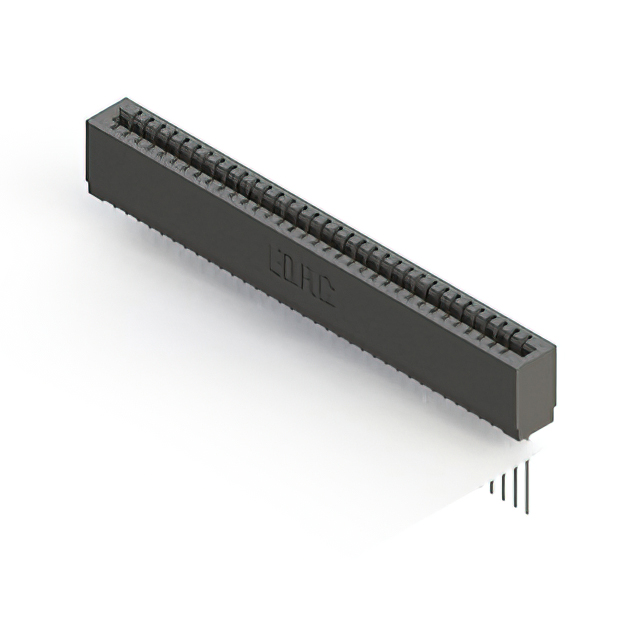

EDAC Inc. 725-034-541-101	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female	1	Gold	Cantilever	Single	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic	34	1

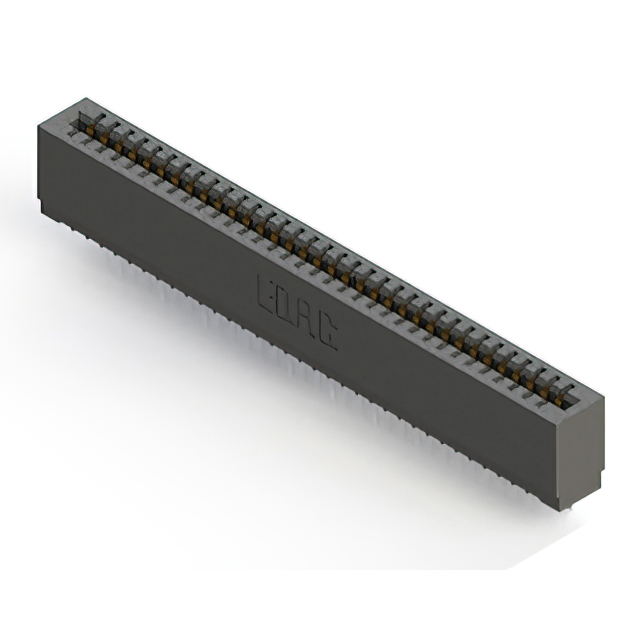

EDAC Inc. 725-034-525-101	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female	1	Gold	Cantilever	Single	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic	34	1
EDAC Inc. 725-034-522-101	Non Specified - Single Edge	30 Áin	0.76 Ám	Press-Fit	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female	1	Gold	Cantilever	Single	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic	34	1

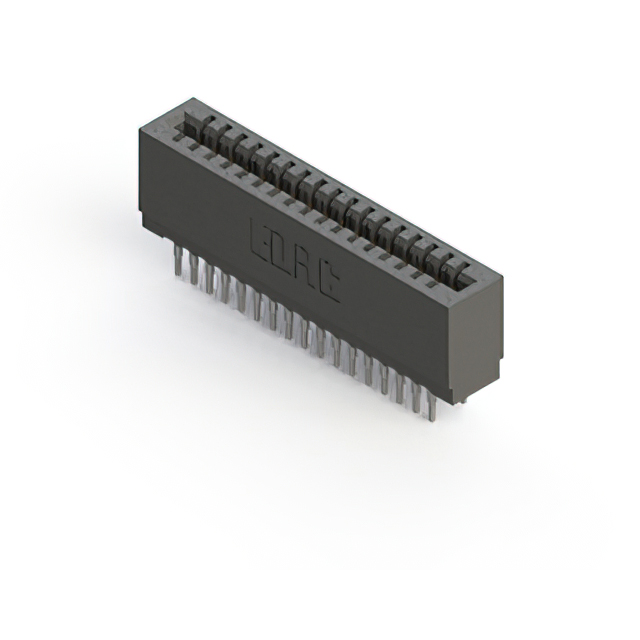

EDAC Inc. 725-034-541-201	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female		Gold	Cantilever	Dual	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic			2	2	17

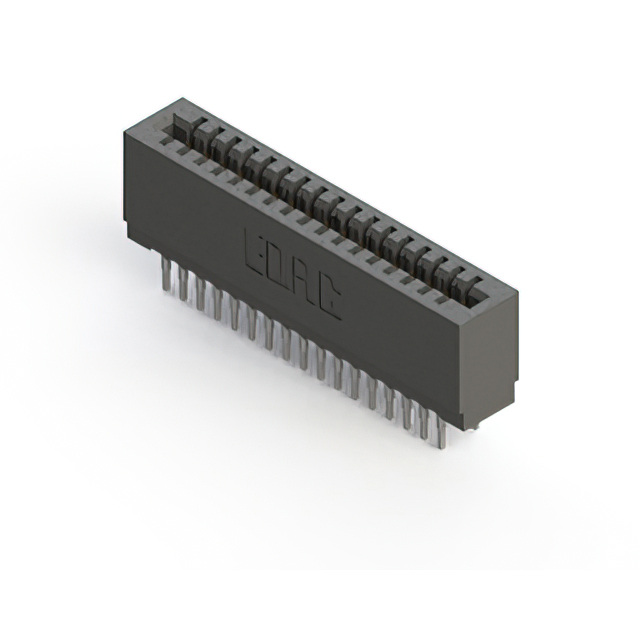

EDAC Inc. 725-034-540-201	Non Specified - Dual Edge	30 Áin	0.76 Ám	Press-Fit Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	0.1 "	2.54 mm	-40 C	105 ░C	Female		Gold	Cantilever	Dual	Through Hole	Copper Alloy	34	Black	Polyester Thermoplastic			2	2	17
