CS-4-12 Series

Catalog

SWITCH ROTARY DIP SPDT 0.1A 16V

Part	Electrical Life	Body Material	Length [x]	Length [x]	Height Above Board	Height Above Board [z]	Circuit	Number of Positions	Contact Material	Current Rating (Amps)	Mounting Type	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Level	Contact Finish	Termination Style	Actuator Type
Nidec Components Corporation CS-4-12YB	200 Cycles	Epoxy	5 mm	0.197 in	2.3 mm	0.091 "	SPDT	2	Copper Alloy	100 mA	Surface Mount	16 VDC	-25 °C	70 °C	Flush Recessed	Gold	Gull Wing	Rotary for Tool
Nidec Components Corporation CS-4-12XTB	200 Cycles	Epoxy	5 mm	0.197 in	2.3 mm	0.091 "	SPDT	2	Copper Alloy	100 mA	Surface Mount	16 VDC	-25 °C	70 °C	Flush Recessed	Gold	Gull Wing	Rotary for Tool
Nidec Components Corporation CS-4-12YTA	200 Cycles	Epoxy	5 mm	0.197 in	2.3 mm	0.091 "	SPDT	2	Copper Alloy	100 mA	Surface Mount	16 VDC	-25 °C	70 °C	Flush Recessed	Gold	J Lead	Rotary for Tool

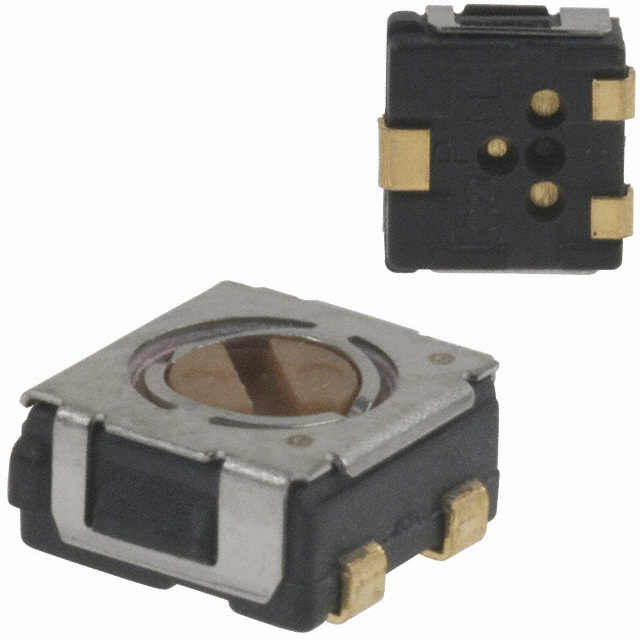

Nidec Components Corporation CS-4-12XTA	200 Cycles	Epoxy	5 mm	0.197 in	2.3 mm	0.091 "	SPDT	2	Copper Alloy	100 mA	Surface Mount	16 VDC	-25 °C	70 °C	Flush Recessed	Gold	J Lead	Rotary for Tool
Nidec Components Corporation CS-4-12YTB	200 Cycles	Epoxy	5 mm	0.197 in	2.3 mm	0.091 "	SPDT	2	Copper Alloy	100 mA	Surface Mount	16 VDC	-25 °C	70 °C	Flush Recessed	Gold	Gull Wing	Rotary for Tool
Nidec Components Corporation CS-4-12YA	200 Cycles	Epoxy	5 mm	0.197 in	2.3 mm	0.091 "	SPDT	2	Copper Alloy	100 mA	Surface Mount	16 VDC	-25 °C	70 °C	Flush Recessed	Gold	J Lead	Rotary for Tool
