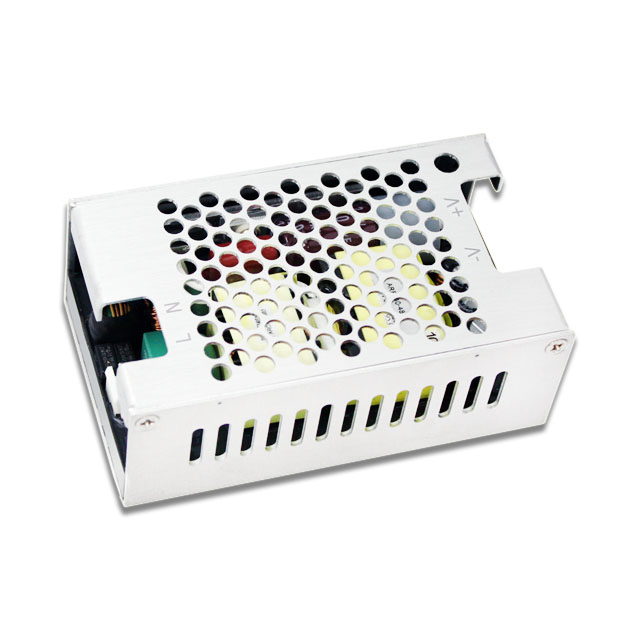

ARF240E Series
Manufacturer: ARCH Electronics Corp
Beta
⌘K
AC/DC CONVERTER 24V 240W
| Part | Minimum Load Required | Current - Output 1 | Power (Watts) | Features | Number of Outputs | Type | Voltage - Input [Max] | Voltage - Input [Min] | Mounting Type | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Efficiency | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Standard Number | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ARCH Electronics Corp | 10 A | 240 Watts | Adjustable Output PFC Universal Input | 1 | Enclosed | 264 VAC | 90 VAC | Chassis Mount | 1.54 in | 39.1 mm | 62.5 mm | 104.1 mm | 2.46 in | 4.1 " | 4000 V | 93 % | CB CE cURus | 80 °C | -30 °C | ITE (Commercial) | 60950-1 62368-1 | 24 V |
