68458 Series

Catalog

SINGLE ROW RIGHT ANGLE

Part	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Material	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Rows	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Length - Post	Termination	Contact Type	Number of Positions	Connector Type	Contact Shape	Number of Positions Loaded	Mounting Type	Shrouding	Fastening Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post
Amphenol ICC (FCI) 68458-120HLF	0.318 "	8.08 mm	Phosphor Bronze	Gold or Gold GXT™	0.1 in	2.54 mm	3 A	1	Black	30 Áin	0.76 Ám	0.11 in	2.79 mm	Solder	Male Pin	20	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 68458-404HLF	0.318 "	8.08 mm	Phosphor Bronze		0.1 in	2.54 mm	3 A	1	Black	100 çin	2.54 çm	0.11 in	2.79 mm	Solder	Male Pin	4	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C	Tin

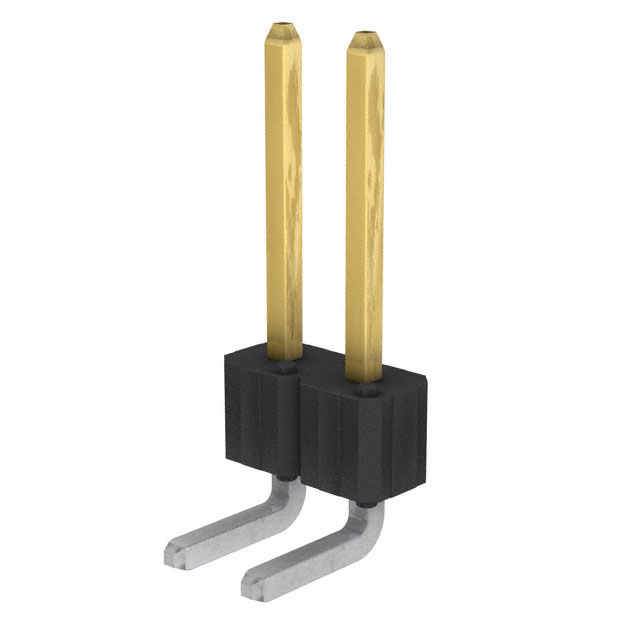

Amphenol ICC (FCI) 68458-202HLF	0.318 "	8.08 mm	Phosphor Bronze	Gold or Gold GXT™	0.1 in	2.54 mm	3 A	1	Black	15 µin	0.38 µm	0.11 in	2.79 mm	Solder	Male Pin	2	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 68458-131HLF	0.318 "	8.08 mm	Phosphor Bronze	Gold or Gold GXT™	0.1 in	2.54 mm	3 A	1	Black	30 Áin	0.76 Ám	0.11 in	2.79 mm	Solder	Male Pin	31	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 68458-435HLF	0.318 "	8.08 mm	Phosphor Bronze		0.1 in	2.54 mm	3 A	1	Black	100 çin	2.54 çm	0.11 in	2.79 mm	Solder	Male Pin	35	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C	Tin
Amphenol ICC (FCI) 68458-419HLF	0.318 "	8.08 mm	Phosphor Bronze		0.1 in	2.54 mm	3 A	1	Black	100 çin	2.54 çm	0.11 in	2.79 mm	Solder	Male Pin	19	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C	Tin
Amphenol ICC (FCI) 68458-423HLF	0.318 "	8.08 mm	Phosphor Bronze		0.1 in	2.54 mm	3 A	1	Black	100 çin	2.54 çm	0.11 in	2.79 mm	Solder	Male Pin	23	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C	Tin
Amphenol ICC (FCI) 68458-409HLF	0.318 "	8.08 mm	Phosphor Bronze		0.1 in	2.54 mm	3 A	1	Black	100 çin	2.54 çm	0.11 in	2.79 mm	Solder	Male Pin	9	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C	Tin
Amphenol ICC (FCI) 68458-126HLF	0.318 "	8.08 mm	Phosphor Bronze	Gold or Gold GXT™	0.1 in	2.54 mm	3 A	1	Black	30 Áin	0.76 Ám	0.11 in	2.79 mm	Solder	Male Pin	26	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C
Amphenol ICC (FCI) 68458-122HLF	0.318 "	8.08 mm	Phosphor Bronze	Gold or Gold GXT™	0.1 in	2.54 mm	3 A	1	Black	30 Áin	0.76 Ám	0.11 in	2.79 mm	Solder	Male Pin	22 positions	Header	Square	All	Through Hole Right Angle	Unshrouded	Push-Pull	UL94 V-0	0.095 in	2.41 mm	-65 ░C	130 °C
