ADS4225 Series

Catalog

DUAL-CHANNEL, 12-BIT, 125-MSPS ANALOG-TO-DIGITAL CONVERTER (ADC)

Part	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Mounting Type	Architecture	Sampling Rate (Per Second)	Ratio - S/H:ADC	Number of Bits	Number of A/D Converters	Package / Case	Reference Type	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Interface	Number of Inputs	Supplier Device Package	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Features	Configuration	Supplied Contents	Input Range
Texas Instruments ADS4225IRGCT	1.7 V	1.9 V	Surface Mount	Pipelined	125 M	1:1	12 bits	2	64-VFQFN Exposed Pad	Internal	Differential	85 °C	-40 °C	LVDS - Parallel Parallel	2	64-VQFN (9x9)	1.9 V	1.7 V	Simultaneous Sampling	S/H-ADC

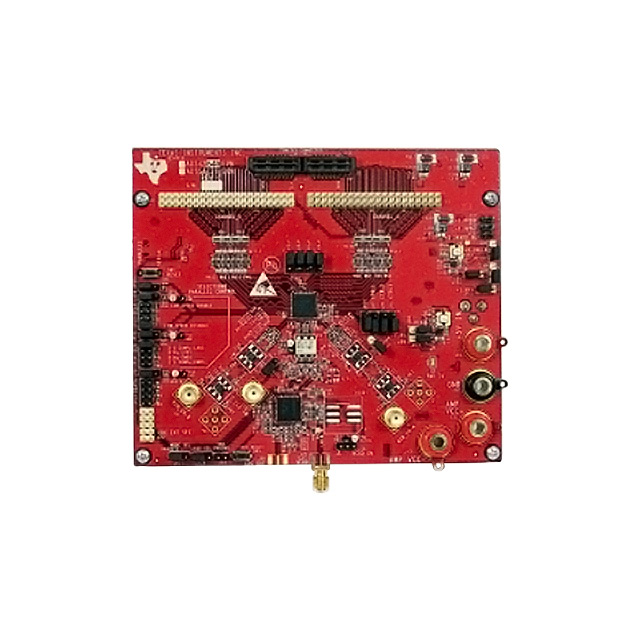

Texas Instruments ADS4225EVM					125 M		12 bits	2						CMOS LVDS Parallel Serial							Board(s)	2 Vpp
Texas Instruments ADS4225IRGCR	1.7 V	1.9 V	Surface Mount	Pipelined	125 M	1:1	12 bits	2	64-VFQFN Exposed Pad	Internal	Differential	85 °C	-40 °C	LVDS - Parallel Parallel	2	64-VQFN (9x9)	1.9 V	1.7 V	Simultaneous Sampling	S/H-ADC
Texas Instruments ADS4225IRGC25	1.7 V	1.9 V	Surface Mount	Pipelined	125 M	1:1	12 bits	2	64-VFQFN Exposed Pad	Internal	Differential	85 °C	-40 °C	LVDS - Parallel Parallel	2	64-VQFN (9x9)	1.9 V	1.7 V	Simultaneous Sampling	S/H-ADC
