282815 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
TERM BLOCK HDR 14POS 5.08MM
| Part | Insulation Height | Insulation Height | Termination Style | Pitch [x] | Pitch [x] | Material Flammability Rating | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Contact Mating Finish | Features | Header Orientation | Type | Voltage - UL | Contact Tail Length | Contact Tail Length | Positions Per Level | Number of Positions | Number of Levels | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 8.36 mm | 0.329 in | Solder | 0.2 in | 5.08 mm | UL94 V-0 | Copper Alloy | -40 °C | 110 °C | Through Hole | Tin | Side Stacking | 90° Right Angle | Header Male Pins Shrouded (2 Side) | 300 V | 3.5 mm | 0.138 in | 14 | 14 | 1 | Green |
 TE Connectivity Raychem Cable Protection | 8.36 mm | 0.329 in | Solder | 0.2 in | 5.08 mm | UL94 V-0 | Copper Alloy | -40 °C | 110 °C | Through Hole | Tin | Side Stacking | 90° Right Angle | Header Male Pins Shrouded (2 Side) | 300 V | 3.5 mm | 0.138 in | 11 | 11 | 1 | Green |

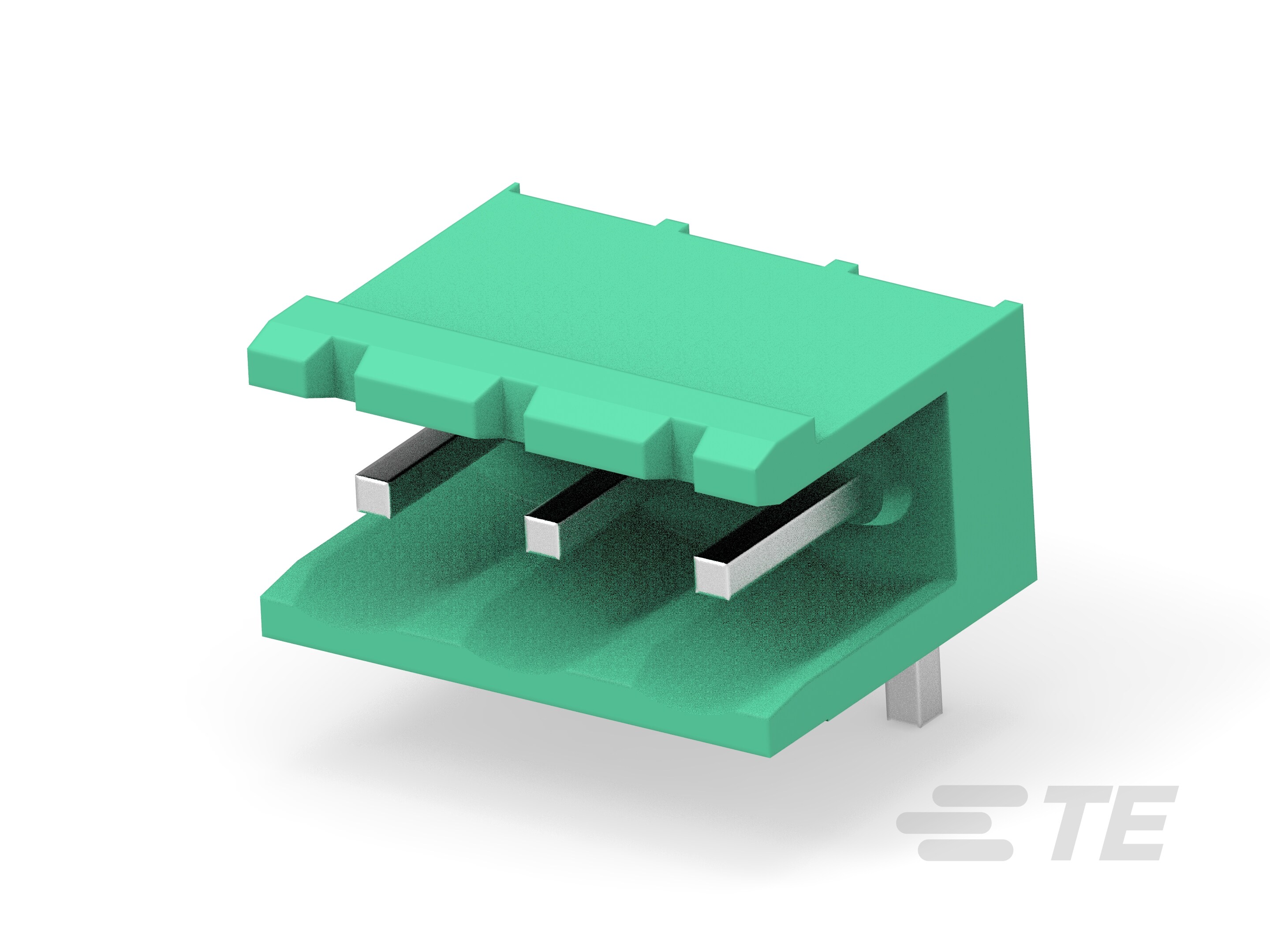

 TE Connectivity Raychem Cable Protection | 8.36 mm | 0.329 in | Solder | 0.2 in | 5.08 mm | UL94 V-0 | Copper Alloy | -40 °C | 110 °C | Through Hole | Tin | Side Stacking | 90° Right Angle | Header Male Pins Shrouded (2 Side) | 300 V | 3.5 mm | 0.138 in | 3 | 1 | Green |
