204928 Series

SlimStack Board-to-Board Plug, 0.40mm Pitch, FSB3 Floating Series, 3.00mm Mated Height, 3.20 Mated Width, 60 Circuits

Manufacturer: Molex

Catalog

SlimStack Board-to-Board Plug, 0.40mm Pitch, FSB3 Floating Series, 3.00mm Mated Height, 3.20 Mated Width, 60 Circuits

Part	Mated Stacking Heights	Pitch [x]	Pitch [x]	Mounting Type	Number of Positions	Features	Number of Rows	Height Above Board [z]	Height Above Board [z]	Contact Finish	Connector Type
Molex 2049280601	3 mm	0.016 in	0.4 mm	Surface Mount	60	Pick and Place Solder Retention	2	0.093 in	2.35 mm	Gold	Outer Shroud Contacts Plug

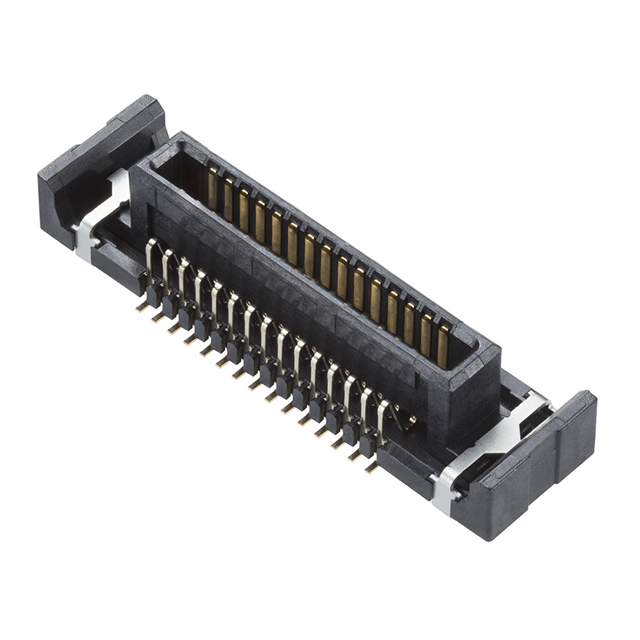

Molex 2049280401	3 mm	0.016 in	0.4 mm	Surface Mount	40	Pick and Place Solder Retention	2	0.093 in	2.35 mm	Gold	Outer Shroud Contacts Plug

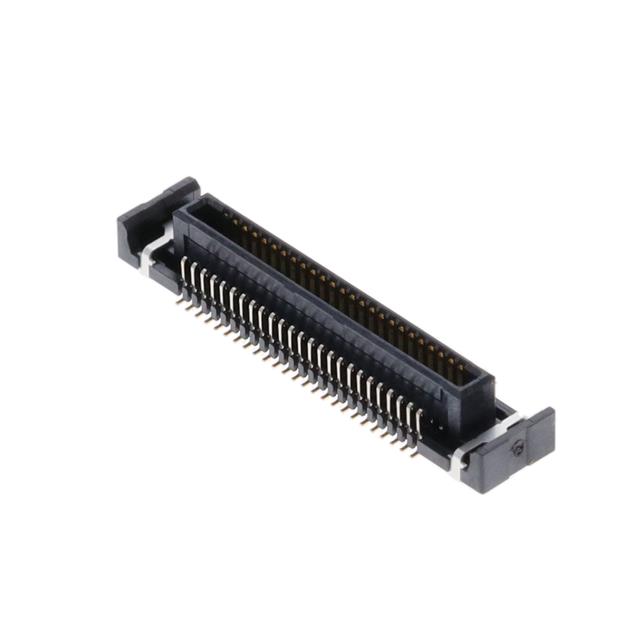

Molex 2049280501	3 mm	0.016 in	0.4 mm	Surface Mount	50	Pick and Place Solder Retention	2	0.093 in	2.35 mm	Gold	Outer Shroud Contacts Plug

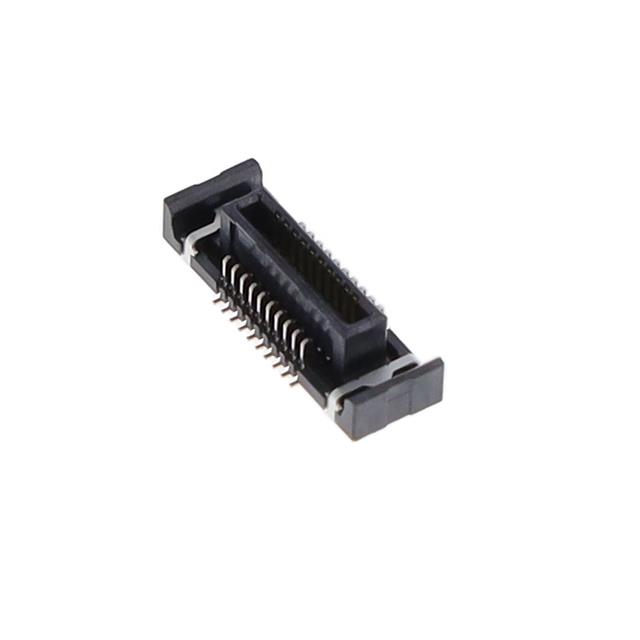

Molex 2049280201	3 mm	0.016 in	0.4 mm	Surface Mount	20	Pick and Place Solder Retention	2	0.093 in	2.35 mm	Gold	Outer Shroud Contacts Plug

SlimStack Board-to-Board Plug, 0.40mm Pitch, FSB3 Floating Series, 3.00mm Mated Height, 3.20 Mated Width, 60 Circuits
