UTL6J Series

Catalog

CONN PLG HSG F/M 4POS INLINE

Part	Fastening Type	Insert Material	Contact Shape	Mounting Type	Shell Material	Type	Note	Features	Ingress Protection Description	Ingress Protection IP Rating	Operating Temperature (Min)	Operating Temperature (Max)	Orientation	Connector Type	Contact Type	Shielding	Housing Color	Shell Size - Insert Length	Shell Size - Insert Width	Material Flammability Rating	Contact Size	Number of Positions	Position Types

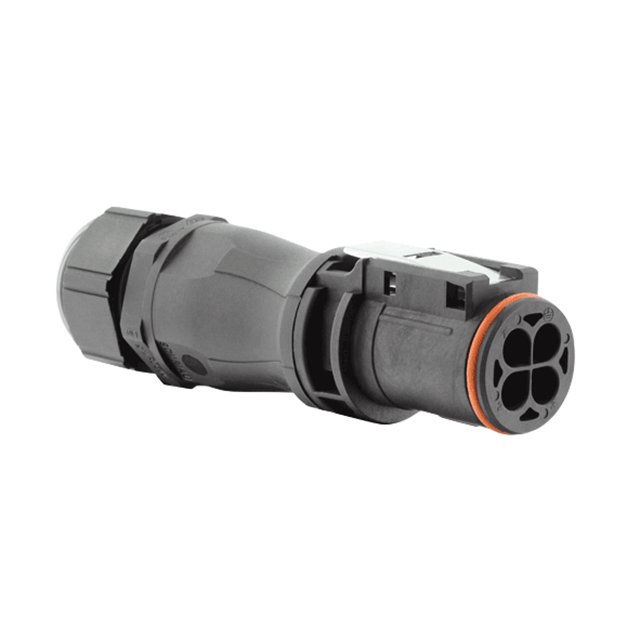

Amphenol Aerospace Operations UTL6JC103G1P	Latch Lock	Nylon PA Polyamide	Circular	Free Hanging (In-Line)	Nylon Polyamide (PA)	For Female Sockets and Male Pins	Contacts Not Included	Backshell	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Keyed	Plug Housing	Crimp	Unshielded	Black	10 mm	3 mm	UL94 V-0	16 S	4	PE

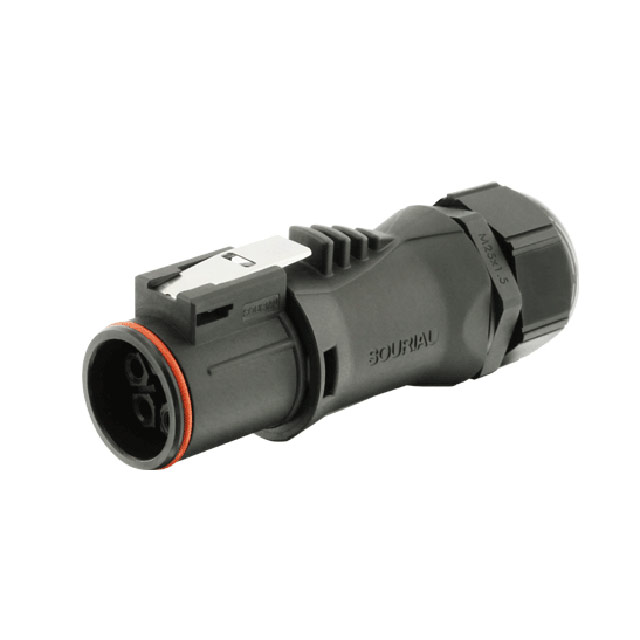

Amphenol Aerospace Operations UTL6JC145S	Latch Lock	Nylon PA Polyamide	Circular	Free Hanging (In-Line)	Nylon Polyamide (PA)	For Female Sockets	Contacts Not Included	Backshell	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Keyed	Plug Housing	Crimp	Unshielded	Black	14 mm	5 mm	UL94 V-0	16 S	5	PE Power

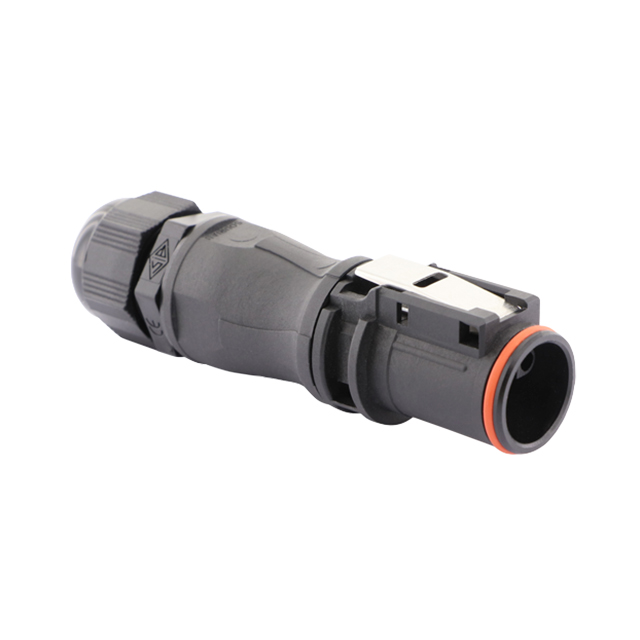

Amphenol Aerospace Operations UTL6JC103G1S	Latch Lock	Nylon PA Polyamide	Circular	Free Hanging (In-Line)	Nylon Polyamide (PA)	For Female Sockets and Male Pins	Contacts Not Included	Backshell	Dust Tight Water Resistant Waterproof	IP68 IP69K	-40 °C	105 °C	Keyed	Plug Housing	Crimp	Unshielded	Black	10 mm	3 mm	UL94 V-0	16 S	4	PE
