ECS-CTP Series
Manufacturer: ECS Inc.
Beta
⌘K

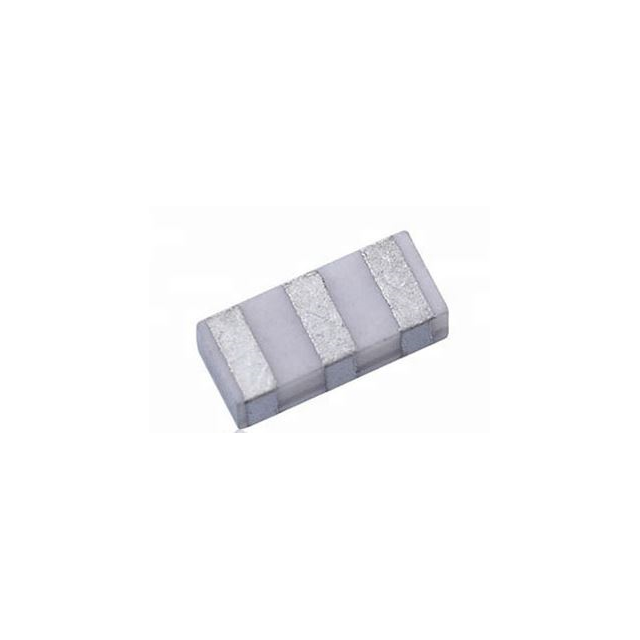

RESONATORS 3.58MHZ CERAMIC RESONATOR BUILT IN CAPACITOR 30PF 30 OHMS -40C - 85C SURFACE MOUNT 6.0 X 3.0 X 1.5 MM
| Part | Height | Height | Capacitance | Impedance | Height [z] | Height [z] | Features | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Frequency Tolerance | Package / Case | Type | Frequency Stability | Frequency | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 0.079 in | 2 mm | 30 pF | 30 Ohms | 1.7 mm | 0.067 in | Built in Capacitor | Surface Mount | 85 °C | -40 C | 0.5 % | 3-SMD No Lead | Ceramic | 0.3 % | 3.58 MHz | 0.118 in | 0.236 in | 6 mm | 3 mm |
 ECS Inc. | 30 pF | 30 Ohms | 1.7 mm | 0.067 in | Built in Capacitor | Surface Mount | 85 °C | -40 C | 0.5 % | 3-SMD No Lead | Ceramic | 0.3 % | 8 MHz | 0.118 in | 0.236 in | 6 mm | 3 mm |
