PKV Series
Manufacturer: Rubycon
Beta
⌘K

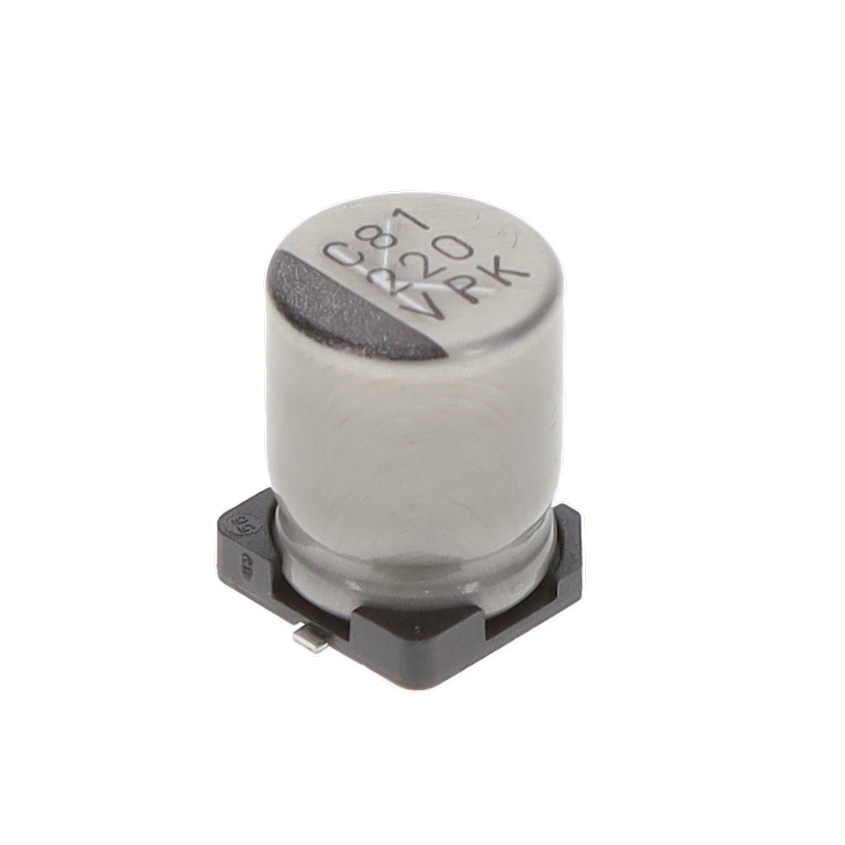

ALUMINUM ORGANIC POLYMER CAPACITORS 35VDC 220UF 20% AEC-Q200
| Part | Package / Case | Ripple Current @ Low Frequency | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Voltage - Rated | Capacitance | Mounting Type | Size / Dimension [diameter] | Size / Dimension [diameter] | Tolerance | Ratings | Type | Operating Temperature [Min] | Operating Temperature [Max] | ESR (Equivalent Series Resistance) | Lifetime @ Temp. | Applications | Ripple Current @ High Frequency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rubycon | Radial Can - SMD | 300 mA | 8.3 mm | 8.3 mm | 0.327 in | 0.327 in | 35 V | 220 µF | Surface Mount | 0.315 in | 8 mm | 20 % | AEC-Q200 | Hybrid | -55 C | 125 °C | 22 mOhms | 4000 Hrs | Automotive | 2 A | 0.413 " | 10.5 mm |
