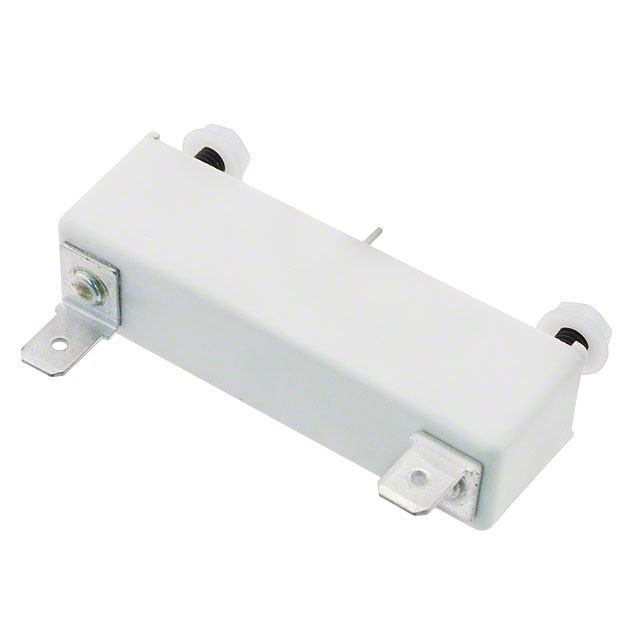

D Series
Manufacturer: Sensata-Crydom
Beta
⌘K
10KV 12V SPNO RHODIUM - SOLDER TURRET HV CONTACT CONNECTIONS
| Part | Coil Current | Switching Voltage [Max] | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Must Release Voltage | Termination Style | Release Time | Contact Material | Coil Type | Must Operate Voltage | Operate Time | Coil Voltage | Contact Rating (Current) | Contact Form | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Load [Min] | Voltage - Load [Max] | Load Current | Package / Case | Output Type | Switching Voltage | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sensata-Crydom | 80 mA | 1000 VAC 1000 VDC | Chassis Mount | -20 ░C | 70 °C | 1.25 VDC | Solder Turret | 2 ms | Rhodium (Rh) | Non Latching | 9 VDC | 3 ms | 12 VDC | 3 A | SPST-NO (1 Form A) | |||||||||
 Sensata-Crydom | 313 mA | 10000 VAC 10000 VDC | Chassis Mount | -20 ░C | 70 °C | 0.5 VDC | Solder Turret | 2 ms | Tungsten (W) | Non Latching | 3.7 VDC | 3 ms | 5 VDC | 2 A | SPST-NO (1 Form A) | |||||||||
 Sensata-Crydom | Chassis Mount | Screw Terminal | 3 V | 32 VDC | 24 V | 280 V | 10 A | Hockey Puck | AC Zero Cross | |||||||||||||||
 Sensata-Crydom | 132 mA | Through Hole | -20 ░C | 70 °C | 0.5 VDC | PC Pin Wire Leads | 3 ms | Tungsten (W) | Non Latching | 3.7 VDC | 2 ms | 5 VDC | 2 A | SPST-NC (1 Form B) | 7000 VAC 7000 VDC | |||||||||
Sensata-Crydom | 179 mA | 1000 VAC 1000 VDC | Chassis Mount | -20 ░C | 70 °C | 0.5 VDC | Solder Turret | 2 ms | Rhodium (Rh) | Non Latching | 3.7 VDC | 3 ms | 5 VDC | 3 A | SPST-NO (1 Form A) | |||||||||
 Sensata-Crydom | 50 mA | 1000 VAC 1000 VDC | Through Hole | -20 ░C | 70 °C | 1.25 VDC | PC Pin Wire Leads | 3 ms | Rhodium (Rh) | Non Latching | 9 VDC | 2 ms | 12 VDC | 3 A | SPST-NC (1 Form B) | |||||||||
 Sensata-Crydom | 80 mA | 1000 VAC 1000 VDC | Chassis Mount | -20 ░C | 70 °C | 1.25 VDC | Quick Connect - 0.250" (6.3mm) | 2 ms | Rhodium (Rh) | Non Latching | 9 VDC | 3 ms | 12 VDC | 3 A | SPST-NO (1 Form A) | 150 Ohms | ||||||||
 Sensata-Crydom | 50 mA | Chassis Mount | -20 ░C | 70 °C | 1.25 VDC | Quick Connect - 0.250" (6.3mm) | 3 ms | Tungsten (W) | Non Latching | 9 VDC | 2 ms | 12 VDC | 2 A | SPST-NC (1 Form B) | 7000 VAC 7000 VDC | |||||||||
 Sensata-Crydom | 312.5 mA | 1000 VAC 1000 VDC | Through Hole | -20 ░C | 70 °C | 0.5 VDC | PC Pin Solder Turret | 2 ms | Tungsten (W) | Non Latching | 3.7 VDC | 3 ms | 5 VDC | 2 A | SPST-NO (1 Form A) | |||||||||
Sensata-Crydom | 30.7 mA | 1000 VAC 1000 VDC | Through Hole | -20 ░C | 70 °C | 4 VDC | PC Pin Wire Leads | 2 ms | Rhodium (Rh) | Non Latching | 20 VDC | 3 ms | 24 VDC | 3 A | SPST-NO (1 Form A) |
