GWQSLR31.E Series

Catalog

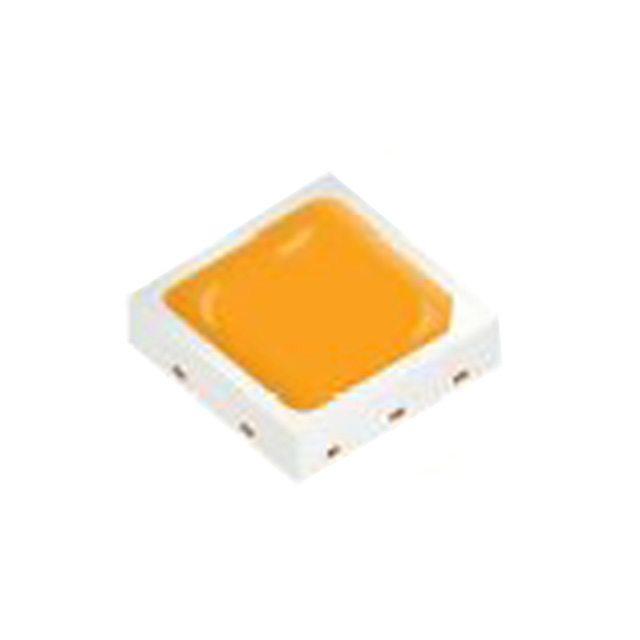

LED OSCONIQ WARM WHT 2700K SMD

Part	Thermal Resistance of Package	Current - Test	Mounting Type	Viewing Angle	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Lumens/Watt @ Current - Test	Package / Case	Package / Case	CRI (Color Rendering Index)	Color	Current - Max [Max]	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
ams-OSRAM USA INC. GW QSLR31.EM-K5LW-XX58-1-150-R18	9.5 °C/W	150 mA	Surface Mount	120 °	140 lm	125 lm	133 lm	139 lm/W	3030 Metric	1212	80	Warm White	200 mA	2700 K	0.03 "	0.75 mm	6.15 V	SMD	3 mm	0.118 in	3 mm	0.118 "
ams-OSRAM USA INC. GW QSLR31.EM-LWLY-XX53-1-150-R18	9.5 °C/W	150 mA	Surface Mount	120 °	150 lm	135 lm	143 lm	149 lm/W	3030 Metric	1212	80	Cool White	200 mA	5000 K	0.03 "	0.75 mm	6.15 V	SMD	3 mm	0.118 in	3 mm	0.118 "
ams-OSRAM USA INC. GW QSLR31.EM-LVLX-XX57-1-150-R18	9.5 °C/W	150 mA	Surface Mount	120 °			138 lm	144 lm/W	3030 Metric	1212	80	Warm White	200 mA	3000 K	0.03 "	0.75 mm	6.15 V	SMD	3 mm	0.118 in	3 mm	0.118 "
