FDSD006 Series
Manufacturer: Belden Inc.
Beta
⌘K
CBL FIBER OPTIC 125UM SINGLEMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Features | Ratings | Tensile Strength | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Cladding Diameter [diameter] | Core Diameter [diameter] | Type | Style | Jacket Color | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | -40 C | 6 Fibers Rip Cord | OFNR | 20.4 kg | 5.59 mm | 0.22 in | Poly-Vinyl Chloride (PVC) | 125 µm | 9 µm | Singlemode | Multiple Fibers | Black | |
 Belden Inc. | 70 °C | -40 C | 6 Fibers Rip Cord | OFNR | 20.4 kg | 5.59 mm | 0.22 in | Low Smoke Zero Halogen (LSZH) | 125 µm | 9 µm | Singlemode | Multiple Fibers | Black | |

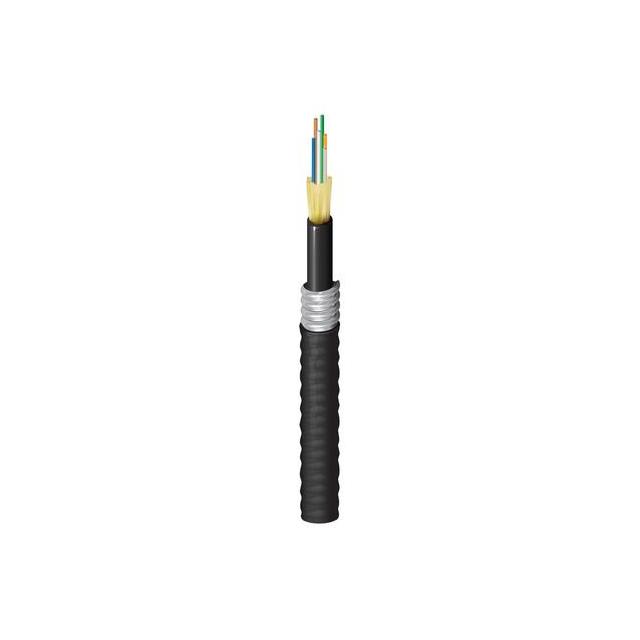

 Belden Inc. | 70 °C | -40 C | Armored | OFCP | 20.4 kg | 11.18 mm | 0.44 " | Poly-Vinyl Chloride (PVC) | 125 µm | 9 µm | Singlemode | Multiple Fibers | Black | 6 Oz |
Belden Inc. | 70 °C | -40 C | Armored | OFCR | 20.4 kg | 12.7 mm | 0.5 in | Poly-Vinyl Chloride (PVC) | 125 µm | 9 µm | Singlemode | Multiple Fibers | Black | 6 Oz |
Belden Inc. | 70 °C | -40 C | 6 Fibers Rip Cord | OFNP | 20.4 kg | 4.83 mm | 0.19 in | Poly-Vinyl Chloride (PVC) | 125 µm | 9 µm | Singlemode | Multiple Fibers | Black |
