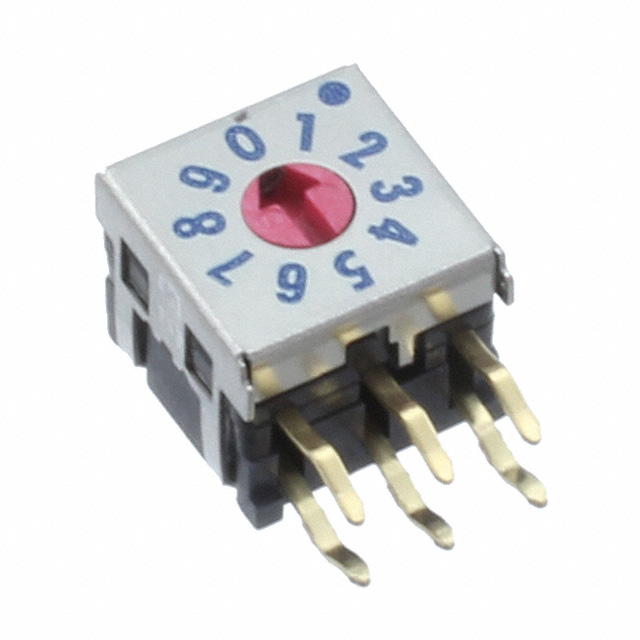

DRR7110 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SW ROTARY DIP BCD COMP 0.03A 15V
| Part | Length | Length | Electrical Life | Mechanical Life | Actuator Type | Number of Positions | Mounting Type | Height Above Board | Height Above Board | Pitch | Pitch | Voltage Rating | Washable | Features | Termination Style | Current Rating (Amps) | Contact Finish | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Actuator Level |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 0.295 in | 7.5 mm | 20000 Steps | 20000 Cycles | Rotary for Tool | 10 | Right Angle Through Hole | 0.311 in | 7.9 mm | 2.54 mm | 0.1 " | 15 VDC | Process Sealed | PC Pin | 30 mA | Gold | 85 °C | -25 °C | BCD Complement | Flush Recessed |
