MaxiBridge Series

Headers & Wire Housings MaxiBridge3Female GreenStraightType 2 CSI

Manufacturer: TE Connectivity AMP Connectors

Catalog

Headers & Wire Housings MaxiBridge3Female GreenStraightType 2 CSI

Catalog

Headers & Wire Housings MaxiBridge3Female GreenStraightType 2 CSI

Part	Number of Rows	Connector Type	Shrouding	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Shape	Contact Length - Mating	Contact Length - Mating	Style	Current Rating (Amps)	Insulation Color	Contact Type	Material Flammability Rating	Contact Finish - Mating	Termination	Fastening Type	Number of Positions Loaded	Features	Contact Material	Mounting Type	Insulation Material	Contact Termination	Color	Pitch	Pitch	Number of Rows [custom]	Row Spacing	Row Spacing
TE Connectivity AMP Connectors 234835-E	1	Header	Shrouded - 4 Wall	0.1 "	2.54 mm	5.05 mm	0.199 in	2	-55 C	150 °C	Tin	Square	4.09 mm	0.161 in	Board to Cable/Wire	12 Amps	Red	Male Pin	UL94 V-0	Gold	Solder	Push-Pull	All	Board Guide Solder Retention	Copper Alloy	Right Angle Surface Mount	Liquid Crystal Polymer (LCP)
TE Connectivity AMP Connectors 474035-E
TE Connectivity AMP Connectors 364213-E	1	Receptacle							-40 C	150 °C								Female Socket				Latch Lock				Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Blue	0.1 "	2.54 mm
TE Connectivity AMP Connectors 474037-E		Receptacle						10	-55 C	150 °C								Female Socket				Latch Lock				Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Red	0.1 "	2.54 mm	2	2.54 mm	0.1 "

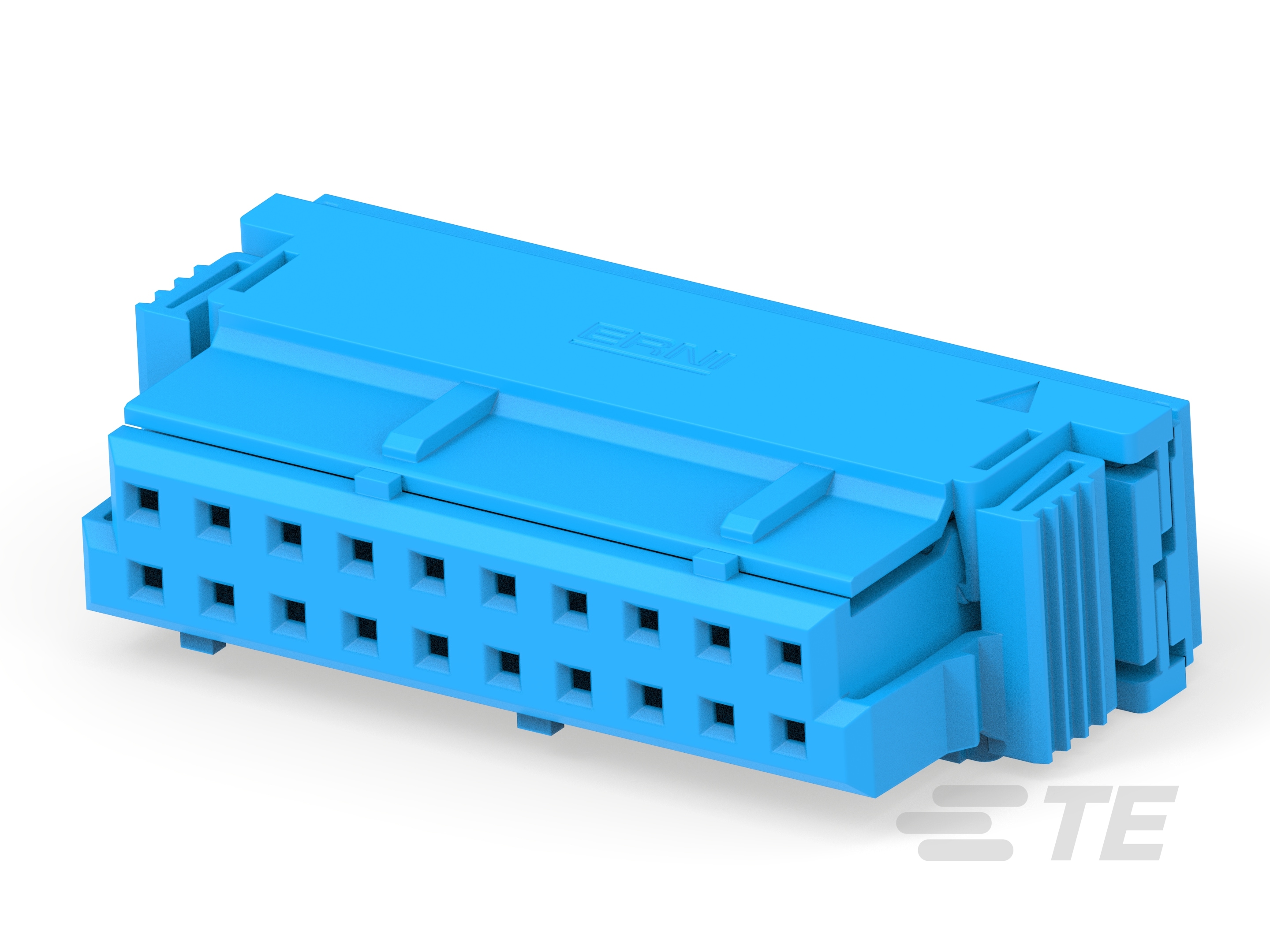

TE Connectivity AMP Connectors 374336-E		Receptacle						20	-40 C	150 °C								Female Socket				Latch Lock				Free Hanging (In-Line)	Glass Filled Nylon Polyamide (PA)	Crimp	Blue	0.1 "	2.54 mm	2	1.27 mm	0.05 "
