SAJ101 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

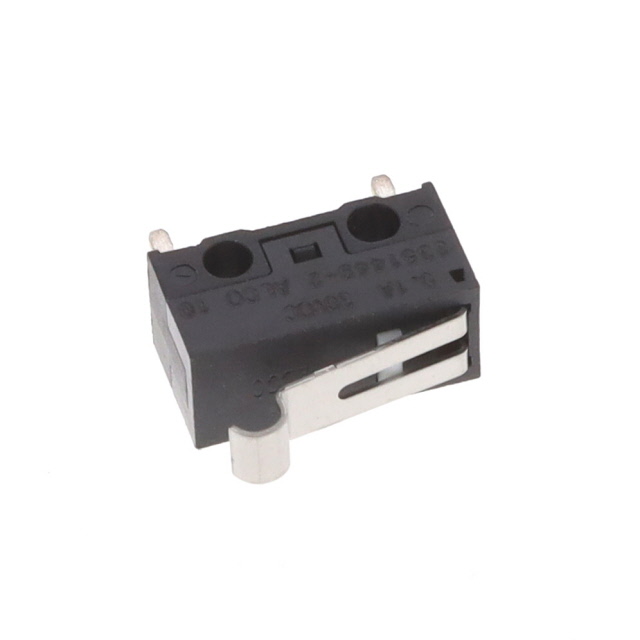

BASIC / SNAP ACTION SWITCHES UMINSA SW RLEV0.74N 0.1A/30VDC NC PCB
| Part | Pretravel | Pretravel | Actuator Type | Operating Force | Voltage Rating - DC | Termination Style | Current Rating (Amps) | Mounting Type | Release Force | Operating Position | Operating Position | Mechanical Life | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Circuit | Overtravel [custom] | Overtravel [custom] | Differential Travel | Differential Travel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 0.15 in | 3.8 mm | Lever Simulated Roller | 40 gf | 30 V | PC Pin | 100 mA | Through Hole | 2 gf | 0.4 in | 10.2 mm | 1000000 Cycles | 30000 Cycles | -25 °C | 75 ░C | On-Mom | SPST-NC | 0.5 mm | 0.02 " | 0.018 in | 0.45 mm |
