R14171 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

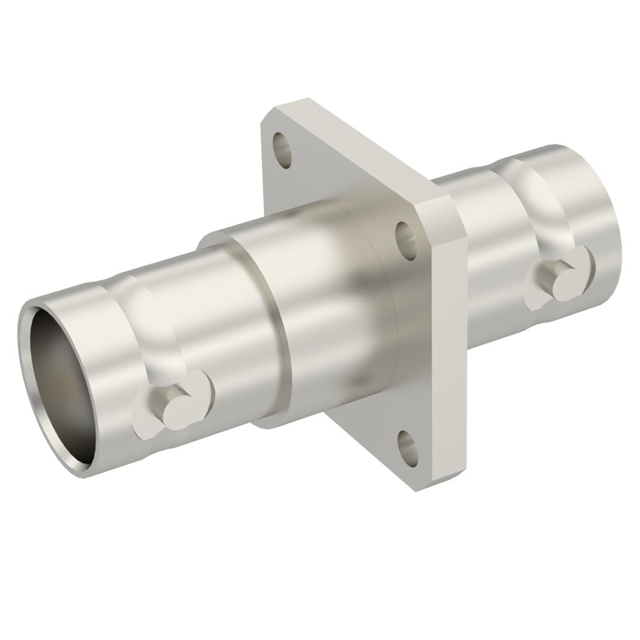

BNC / SQUARE FLANGE FEMALE-FEMAL
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Dielectric Material | Mating Cycles | Body Finish | Center Contact Material | Mounting Type | Center Contact Plating | Mounting Feature | Frequency - Max [Max] | Adapter Series | Convert From (Adapter End) | Center Gender | Impedance | Fastening Type | Conversion Type | Convert To (Adapter End) | Style | Adapter Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 500 | Nickel | Beryllium Copper | Panel Mount | Gold | Flange | 4 GHz | BNC to BNC | BNC Jack Female Socket | Female to Female | 50 Ohms | Bayonet Lock | Same Series | BNC Jack Female Socket | Straight | Jack to Jack | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 500 | Nickel | Beryllium Copper | Panel Mount | Gold | Flange | 4 GHz | BNC to BNC | BNC Jack Female Socket | Female to Female | 50 Ohms | Bayonet Lock | Same Series | BNC Jack Female Socket | Straight | Jack to Jack | |
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass | Polytetrafluoroethylene (PTFE) | 500 | Nickel | Beryllium Copper | Panel Mount | Gold | Flange | 4 GHz | BNC to BNC | BNC Jack Female Socket | Female to Female | 50 Ohms | Bayonet Lock | Same Series | BNC Jack Female Socket | Straight | Jack to Jack | Isolated |
