9572 Series
Manufacturer: Belden Inc.
Beta
⌘K

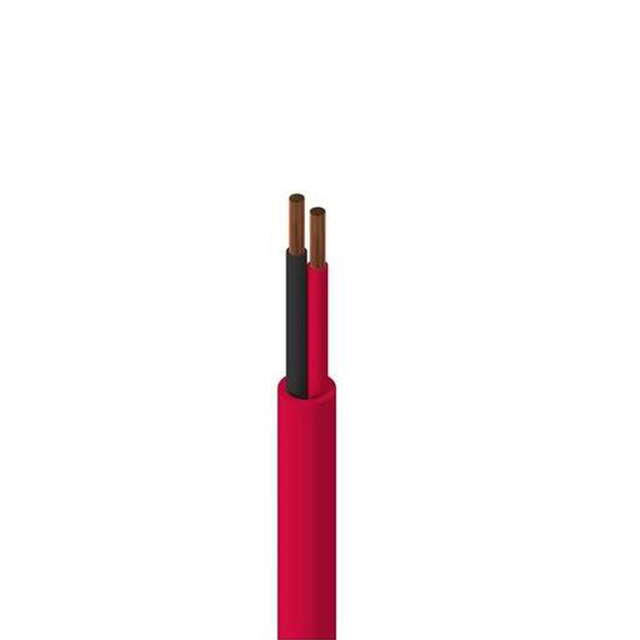

CABLE 2COND 16AWG RED
| Part | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Usage | Conductor Strand | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length | Length | Cable Type | Conductor Material | Ratings | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Poly-Vinyl Chloride (PVC) | 0.238 " | 6.05 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Solid | Red | -40 C | 105 ░C | 2 | 300 VDC | 0.036 in | 0.914 mm | 304.8 m | 1000 ft | Multi-Conductor | Copper Bare | UL Style 2464 | 16 AWG |
Belden Inc. | Poly-Vinyl Chloride (PVC) | 0.238 " | 6.05 mm | Poly-Vinyl Chloride (PVC) | Alarm Safety | Solid | Red | -40 C | 105 ░C | 2 | 300 VDC | 0.036 in | 0.914 mm | 152.4 m | 500 ft | Multi-Conductor | Copper Bare | UL Style 2464 | 16 AWG |
