S-19519 Series

Catalog

LDO VOLTAGE REGULATORS

Part	Mounting Type	Number of Regulators	Voltage Dropout (Max)	Package / Case	Current - Output	Control Features	Voltage - Output (Min/Fixed)	Protection Features	Qualification	Voltage - Input (Max) [Max]	Output Configuration	Current - Quiescent (Iq)	Supplier Device Package	PSRR	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]
ABLIC Inc. S-19519BFPA-BCT1U4	Surface Mount	1	1 V	16-TSSOP (0.173" 4.40mm Width) Exposed Pad	500 mA	Enable Reset Out Watchdog	5 V	Over Current Over Temperature Short Circuit	AEC-Q100	36 V	Positive	18 µA	16-HTSSOP	65 dB	Automotive	125 °C	-40 °C

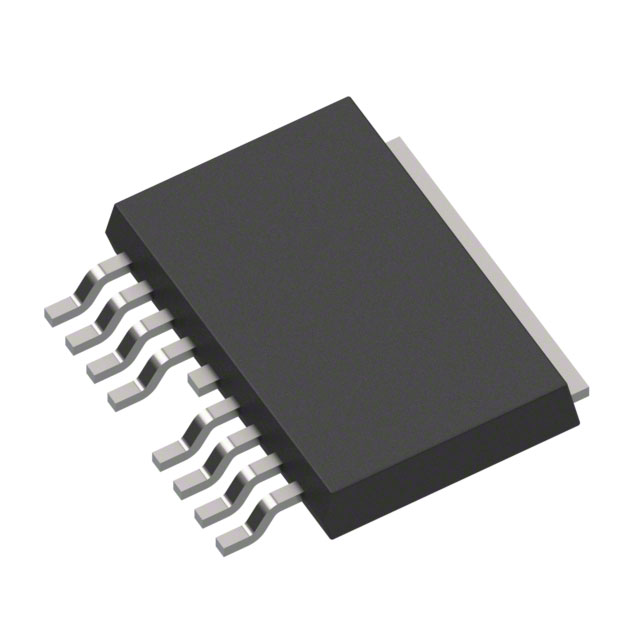

ABLIC Inc. S-19519AFJA-V9T1U4	Surface Mount	1	1 V	DPAK (8 Leads + Tab) TO-252-9	500 mA	Enable Reset Out Watchdog	5 V	Over Current Over Temperature Short Circuit	AEC-Q100	36 V	Positive	18 µA	TO-252-9S	65 dB	Automotive	125 °C	-40 °C
ABLIC Inc. S-19519AFKA-V9T1U4	Surface Mount	1	1 V	DPAK (8 Leads + Tab) TO-252-9	500 mA	Enable Reset Out Watchdog	5 V	Over Current Over Temperature Short Circuit	AEC-Q100	36 V	Positive	18 µA	TO-252-9S	65 dB	Automotive	125 °C	-40 °C
ABLIC Inc. S-19519AY2A-V9T1U4	Surface Mount	1		DPAK (8 Leads + Tab) TO-252-9	500 mA	Enable Reset Out Watchdog	3.3 V	Over Current Over Temperature Short Circuit	AEC-Q100	36 V	Positive	18 µA	TO-252-9S	60 dB	Automotive	125 °C	-40 °C	1.2 V
