S14B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

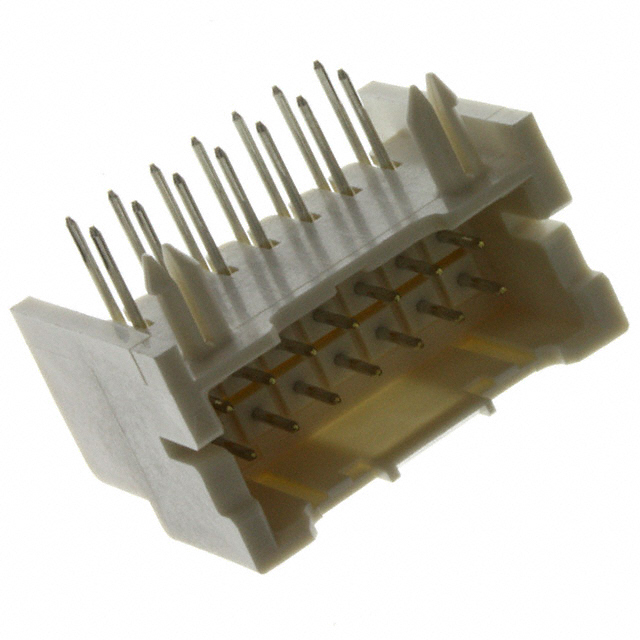

CONN HEADER R/A 14POS 2.5MM
| Part | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Contact Shape | Insulation Material | Voltage Rating | Insulation Height | Insulation Height | Material Flammability Rating | Contact Length - Post [x] | Contact Length - Post | Pitch - Mating | Pitch - Mating | Insulation Color | Contact Type | Current Rating (Amps) | Shrouding | Mounting Type | Number of Positions Loaded | Contact Finish - Post | Fastening Type | Connector Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Number of Rows [custom] | Style | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 14 | 85 °C | -25 °C | Circular | Glass Filled Nylon 6/6 Polyamide (PA66) | 250 V | 12.1 mm | 0.476 " | UL94 V-0 | 0.134 " | 3.4 mm | 2.5 mm | 0.098 in | Natural | Male Pin | 3 A | Shrouded - 4 Wall | Right Angle Through Hole | All | Tin | Locking Ramp | Header | 2.5 mm | 0.098 in | 2 | Board to Cable/Wire | Copper Alloy | Solder |
