Schaffner FN351 Series

Catalog

LINE FILTER 50A CHASSIS MOUNT

Part	Configuration	Current	Filter Type	Voltage - Rated AC (Phase to Ground/Neutral)	Frequency - Operating	Approval Agency	Voltage - Rated AC (Phase to Phase)	Termination Style	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type
TE Connectivity AMP Connectors FN351H-50-33	Single Stage	50 A	Three Phase (Delta)	300 V	60 Hz	CSA ENEC UR	520 V	Terminal Block	Inverters Power Drive Systems	100 °C	-25 °C	Chassis Mount

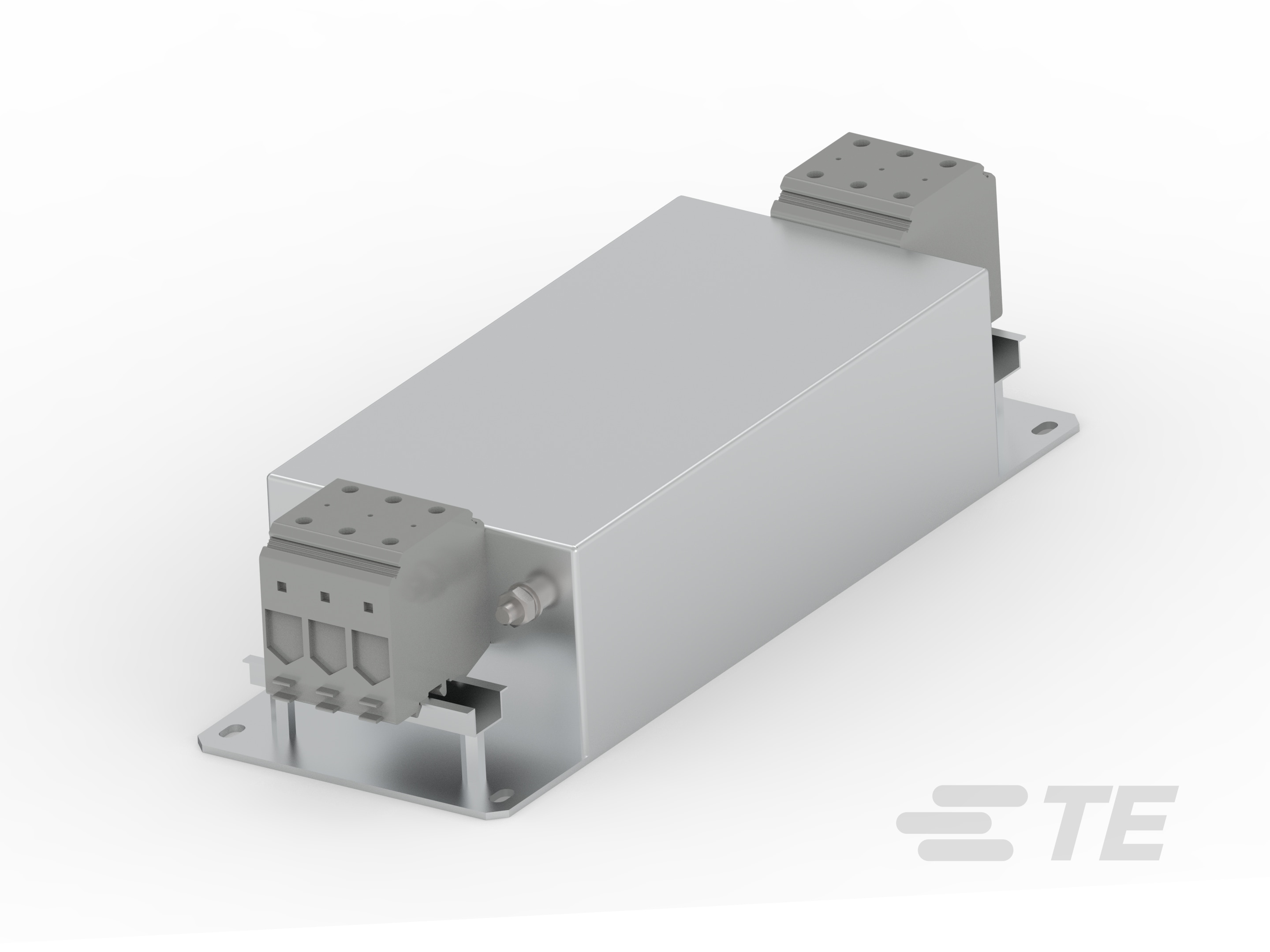

TE Connectivity AMP Connectors FN351H-180-36	Single Stage	180 A	Three Phase (Delta)	300 V	60 Hz		520 V	Terminal Block	Inverters Power Drive Systems	100 °C	-25 °C	Chassis Mount
TE Connectivity AMP Connectors FN351H-16-29	Single Stage	16 A	Three Phase (Delta)	300 V	60 Hz	CSA ENEC UR	520 V	Terminal Block	Inverters Power Drive Systems	100 °C	-25 °C	Chassis Mount
TE Connectivity AMP Connectors FN351H-25-33	Single Stage	25 A	Three Phase (Delta)	300 V	60 Hz	CSA ENEC UR	520 V	Terminal Block	Inverters Power Drive Systems	100 °C	-25 °C	Chassis Mount
