1943/3F Series
Manufacturer: ALPHA WIRE
Beta
⌘K

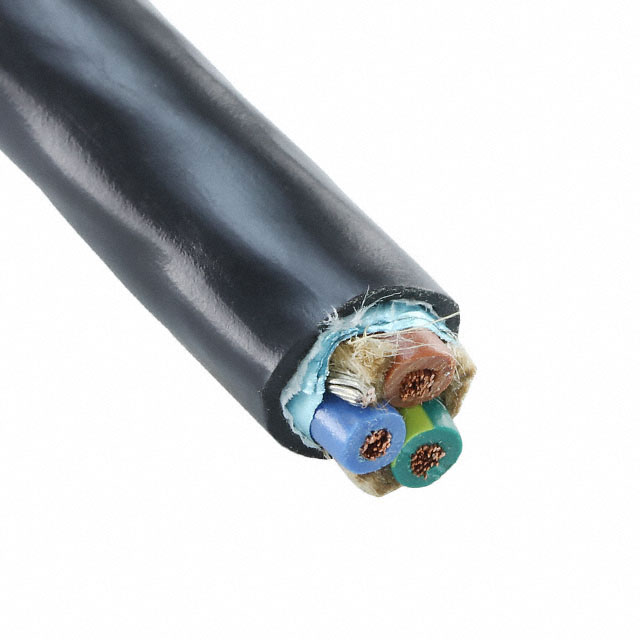

CABLE 3COND 14AWG BLK SHLD 250'
| Part | Shield Coverage | Shield Material | Wire Gauge | Cable Type | Jacket Color | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Shield Type | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Insulation | Features | Number of Conductors | Voltage | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 14.5 AWG | Multi-Conductor | Black | Copper Bare | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Foil | -30 ░C | 105 ░C | Poly-Vinyl Chloride (PVC) | Drain Wire | 3 | 300 VDC | 76.2 m | 250 ft | 0.372 in | 9.45 mm | 41 | 30 |
