75021 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

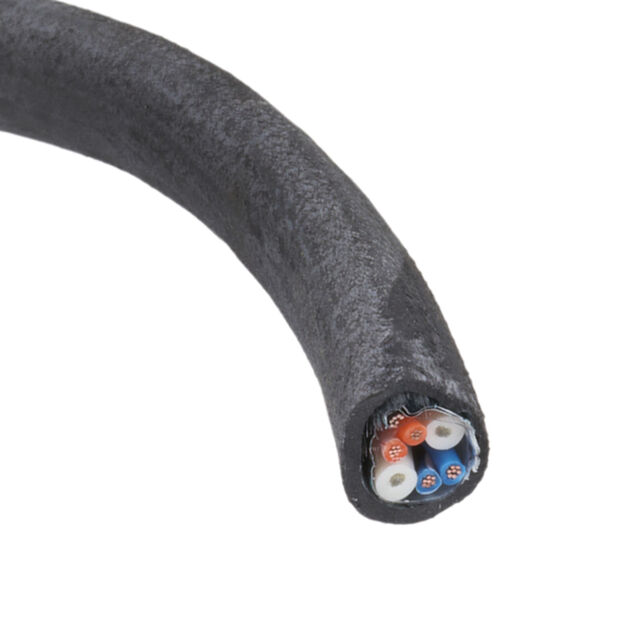

MULTI-CONDUCTOR CABLES CAT 5E INDUSTRIAL ETHERNET 24 AWG 2PR CONDUCTOR, FOIL, 500FT BLACK
| Part | Shield Coverage | Shield Material | Shield Type | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length | Features | Usage | Conductor Insulation | Conductor Material | Length [x] | Length [x] | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Operating Temperature [Min] | Operating Temperature [Max] | Jacket (Insulation) Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Voltage | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Foil | Multi-Pair Cat5e | 7.62 mm | 0.3 in | 15.24 m 76.2 m 152.4 m | 50 ft 250 ft 500 ft | Biological Compatibility Drain Wire Rip Cord | Communication | Polypropylene (PP) | Copper Bare | 100 ft | 30.5 m | 24 AWG | 7 | 32 AWG | Black | -50 °C | 105 ░C | Thermoplastic Elastomer (TPE) | 0.035 in | 0.889 mm | ISO 10993 | 300 VDC | 4 |
