1718230 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
AUTOMOTIVE CONN HOUSING, PLUG, 7POS ROHS COMPLIANT: YES
| Part | Insert Material [custom] | Contact Shape | Note | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Number of Positions | Fastening Type | Shielding | Contact Size | Orientation | Type | Housing Color | Connector Type | Ingress Protection | Shell Material | Contact Type | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

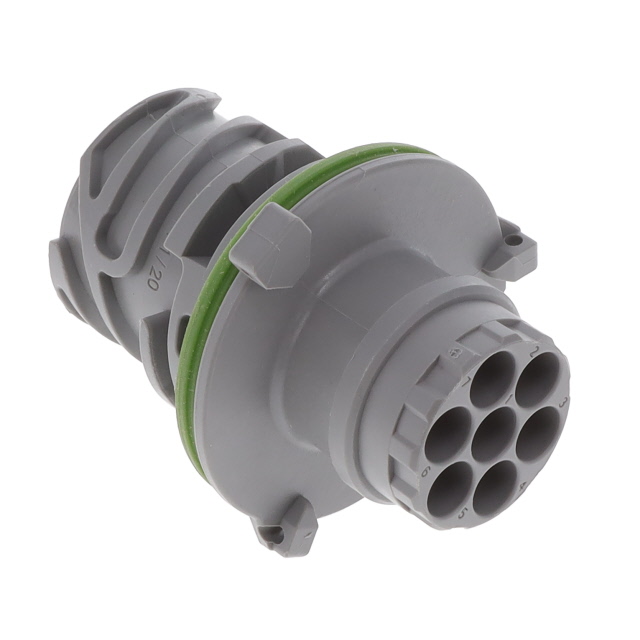

 TE Connectivity AMP Connectors | Polybutylene Terephthalate (PBT) Glass Filled | Circular | Contacts Not Included | 120 °C | -40 C | UL94 HB | 7 | Reverse Bayonet Lock | Unshielded | 1.5 mm | B | For Male Pins | Gray | Receptacle Housing | IP69K - Dust Tight High Temp Water Jets Waterproof | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Free Hanging (In-Line) | |
 TE Connectivity AMP Connectors | Circular | Contacts Not Included | 120 °C | -40 C | UL94 HB | 7 | Bayonet Lock | Unshielded | 1.5 mm | C | For Male Pins | Black | Receptacle Housing | IP67/IP69K | Polybutylene Terephthalate (PBT) Glass Filled | Crimp | Panel Mount | Flange |
